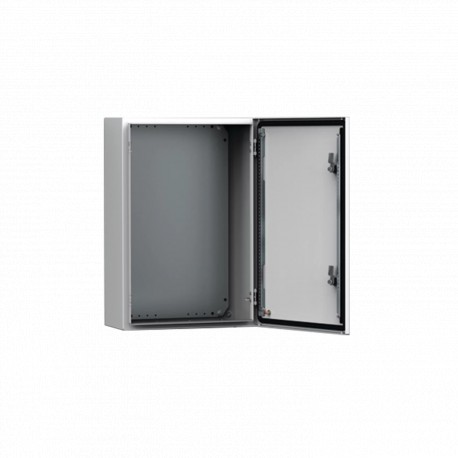

MAS0303021PER5 ELDON Wall mounted, 300x300x210
MAS0303021PER5
0303021
ELDON
1 Pcs.
Wall mounted, 300x300x210
Mural, 300x300x210, compact, 1-door, no MP, mild steel, IP66
Single Door encl. Mild Steel, MAS no Plate, 300x300x210mm, Light Gray
Automation > Enclosure/switchgear cabinet (empty)
Steel Wall Mounting Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A MAS0303021PER5 Eldon wall-mounted enclosure provides durable environmental protection for electrical components, small terminal blocks, and control relays. Wall-mounted junction boxes safeguard sensitive circuitry against dust, moisture, and accidental contact in commercial and light industrial settings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 300mm
- Width (W): 300mm
- Depth (D): 210mm
- Mounting Plate Included: No
- Latch Quantity: 1
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.2mm
- Door Thickness: 1.2mm
- Gland Plate Opening Width: 210mm
- Gland Plate Opening Depth: 96mm
- Number of Gland Plate Openings: 1
- Weight: 5.5kg
- UPC: 783510487362
More info
▲Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 300mm |
| Width (W) | 300mm |
| Depth (D) | 210mm |
| Mounting Plate Included | No |
| Latch Quantity | 1 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.2mm |
| Door Thickness | 1.2mm |
| Gland Plate Opening Width | 210mm |
| Gland Plate Opening Depth | 96mm |
| Number of Gland Plate Openings | 1 |
| Weight | 5.5kg |
| UPC | 783510487362 |
| EAN | 8713574128989 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
