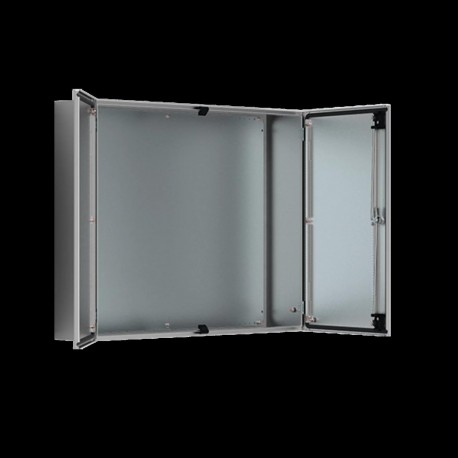

ADR1001230 ELDON Wall mounted, 1000x1200x300
ADR1001230
1001230
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eldon ADR1001230 ELDON Wall mounted, 1000x1200x300 is a heavy-duty wall-mounted enclosure designed to house and protect industrial control gear, PLCs, and electrical distribution equipment in demanding settings. Operators rely on these robust enclosures to safeguard internal components from dust, moisture, and accidental physical contact.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (H): 1000mm
- Width (W): 1200mm
- Depth (D): 300mm
- Gasket Type: Polyurethane
- Material: Stainless Steel 304
- Max Mounting Depth: 282mm
- Finish: Brushed
- Body Thickness: 1.5mm
- Door Thickness: 2mm
- Latch Quantity: 1
- Weight: 81.8kg
- UPC: 783510117429
- EAN: 8713574120310
- Standard Packaging Quantity: 1
- Packing Quantity: 1
More info
▲Features
- Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door: 2 mm. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Door: Corner formed in one piece. Surface mounted, with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Sealing is ensured by an injected polyurethane gasket or by an injected silicone gasket. Inner M6 welded studs to mount optional door profiles MMDP.
- Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Espagnolette three point locking. Stainless steel lock and other versions are available as accessories.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Cable access: No gland plate openings as standard, to maximise sealing and cleanliness.
- Finish: 400 pre-grained stainless steel.
- Protection: Corresponds with IP 55, TYPE 12, IK 10.
- Delivery: Enclosure with door, mounting plate, metallic key and mounting accessories.
- Additional information: For outdoor environments exposed to precipitation, the use of a rain hood is advised. Also in environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 1000mm |
| Width (W) | 1200mm |
| Depth (D) | 300mm |
| Gasket Type | Polyurethane |
| Material | Stainless Steel 304 |
| Max Mounting Depth | 282mm |
| Finish | Brushed |
| Body Thickness | 1.5mm |
| Door Thickness | 2mm |
| Latch Quantity | 1 |
| Weight | 81.8kg |
| UPC | 783510117429 |
| EAN | 8713574120310 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
