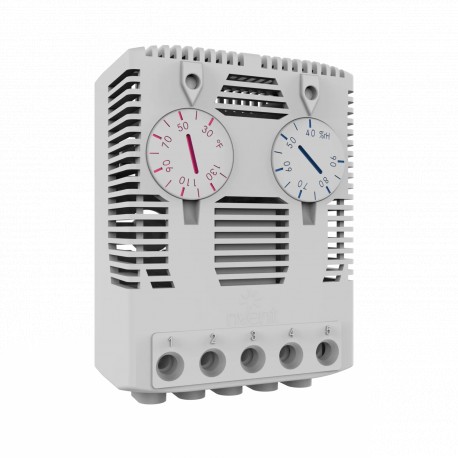

ETF300120 ELDON Thermostat/hygrostat ETF300120
ETF300120
300120
ELDON
1 Pcs.
Thermostat/hygrostat ETF300120
Thermostat/higróstato, setting range: -20 ºC to 60 ºC, 115 V
Thermostat/hygrostat, Setting range: +32ºF to 140ºF, 115V
Automation > Thermostat/hygrostat (enclosure/cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eldon part number ETF300120 is a compact climate control device designed to monitor both temperature and relative humidity inside industrial electrical enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 83mm
- Width: 59mm
- Depth: 45mm
- Material: Plastic
- Finish: Smooth
- Color: Light Gray
- Color Code: RAL 7035
- Nominal Voltage: 115V
- Weight: 0.1kg
- UPC: 783510480943
- EAN: 8713574111769
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Mounting method (EF000003): Clamp mounting
More info
▲Features
- Connection: Pole terminal for 2.5 mm².
- Service life: 50,000 cycles.
- Setting range for ETF300: 0 °C to +60 °C and 40 to 90% R.H.
- Setting range for ETF300120: +32 °F to +140 °F and 40 to 90% R.H.
- Operating temperature: -20 °C to +60 °C.
- Pack quantity: 1 piece.
- Switch capacity: 240 V AC, 8(3) A. 120 V AC, 8(3) A. 24 V DC, 4 A. Value in brackets for inductive load.
- Description: Electronic hygrostat-thermostat monitors the relative humidity and the temperature independently of each other, and it manages heaters and filter fans to prevent condensation and corrosion inside the enclosure. Mounting clip for 35 mm DIN rail (EN 60715).
- Approvals: CE, EAC, cULus_UL Listed.
- Protection: IP 20.
- Material: Plastic according to UL94 V-0.
- Finish: RAL 7035.
- The installed devices, such as fan heaters, automatically turn on or off when they are required, which reduces the operational cost of the control panel.
- Customers can adjust the required humidity and temperature, which means it can be installed in any enclosure, and is not dependant on the other installed components or equipment
- The reliable thermostat and hygrostat manages both the relative humidity and temperature within the enclosure, preventing water condensation from occurring.
- Frequency (Hz): 50/60
| Atributo del producto | Valor |
|---|---|
| Height | 83mm |
| Width | 59mm |
| Depth | 45mm |
| Material | Plastic |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Nominal Voltage | 115V |
| Weight | 0.1kg |
| UPC | 783510480943 |
| EAN | 8713574111769 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
