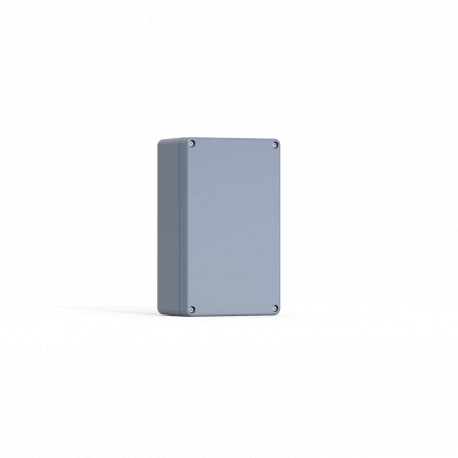

ELDON MGRP080808GE MGRP080808GE ELDON Terminal box, 75x80x75 MGRP080808GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MGRP080808GE ELDON Terminal box, 75x80x75 MGRP080808GE

MGRP080808GE

080808

ELDON

1 Pcs.

Terminal box, 75x80x75 MGRP080808GE Box for terminals, 75x80x75, without MARKER, polyester, IP66 Terminal box, 75x80x75, no MP, polyester, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The MGRP080808GE ELDON Terminal box, 75x80x75 MGRP080808GE is a polyester junction box engineered to securely encase sensitive wiring connections and terminal blocks. Compact polyester enclosures offer strong chemical resistance and protection against environmental contaminants in industrial environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 75 mm
  • Width: 80 mm
  • Depth: 75 mm
  • Body Thickness: 3.5 mm
  • Cover Thickness: 4 mm
  • Cover Screw Quantity: 4
  • Weight: 0.3 kg
  • Material: Polyester
  • Finish: Smooth
  • Color: Squirrel Gray
  • Color Code: RAL 7000
  • UPC: 783510502089
  • EAN: 8713574090774
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000
  • Mounting method (EF000003): Surface mounted

More info

▲

Features

  • Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
  • Material: Glass fibre reinforced polyester.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
  • Flammability: UL94 V-0.
  • Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
  • Finish: RAL 7000.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
  • Note: Mounting plate, GMP, and hinges, HHI, are available separately.
Atributo del producto Valor
Height75 mm
Width80 mm
Depth75 mm
Body Thickness3.5 mm
Cover Thickness4 mm
Cover Screw Quantity4
Weight0.3 kg
MaterialPolyester
FinishSmooth
ColorSquirrel Gray
Color CodeRAL 7000
UPC783510502089
EAN8713574090774
Standard Packaging Quantity1.0000
Packing Quantity1.0000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
