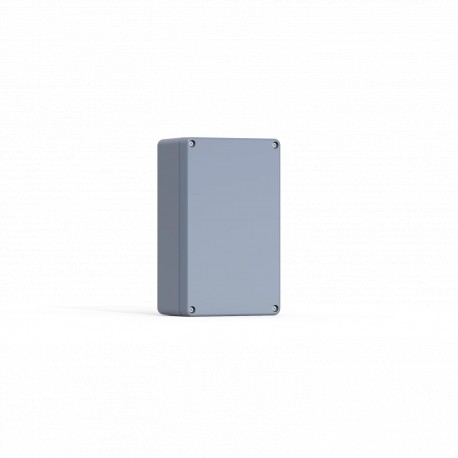

ELDON MGRP081906GE MGRP081906GE ELDON Terminal box, 75x190x55 MGRP081906GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MGRP081906GE ELDON Terminal box, 75x190x55 MGRP081906GE

MGRP081906GE

081906

ELDON

1 Pcs.

Terminal box, 75x190x55 MGRP081906GE Box for terminals, 75x190x55, without MARKER, polyester, IP66 Terminal box, 75x190x55, no MP, polyester, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A robust polyester terminal box supplied by Eldon under part number MGRP081906GE protects sensitive wiring splices and miniature electrical components against harsh operational conditions. Corrosion-resistant junction boxes are widely utilized in industrial facilities to maintain reliable electrical connectivity outdoors or in wet areas.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 75mm
  • Width: 190mm
  • Depth: 55mm
  • Body Thickness: 3.5mm
  • Cover Thickness: 4mm
  • Cover Screw Quantity: 4
  • Weight: 0.5kg
  • Material: Polyester
  • Finish: Smooth
  • Color: Squirrel Gray
  • Color Code: RAL 7000
  • UPC: 783510502287
  • EAN: 8713574090828
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Mounting method (EF000003): Surface mounted

More info

▲

Features

  • Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
  • Material: Glass fibre reinforced polyester.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
  • Flammability: UL94 V-0.
  • Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
  • Finish: RAL 7000.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
  • Note: Mounting plate, GMP, and hinges, HHI, are available separately.
Atributo del producto Valor
Height75mm
Width190mm
Depth55mm
Body Thickness3.5mm
Cover Thickness4mm
Cover Screw Quantity4
Weight0.5kg
MaterialPolyester
FinishSmooth
ColorSquirrel Gray
Color CodeRAL 7000
UPC783510502287
EAN8713574090828
Standard Packaging Quantity1
Packing Quantity1
