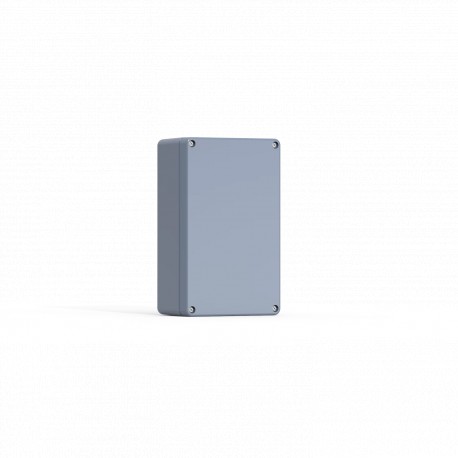

MGRP081608GE ELDON Terminal box, 75x160x75 MGRP081608GE
MGRP081608GE
081608
ELDON
1 Pcs.
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The MGRP081608GE ELDON Terminal box, 75x160x75 MGRP081608GE is a polyester terminal box built to house and safeguard electrical connections in industrial settings. Enclosures of this classification protect internal wiring and terminal blocks from ambient contaminants, dust, and casual physical contact on factory floors.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 75 mm
- Width: 160 mm
- Depth: 75 mm
- Body Thickness: 3.5 mm
- Cover Thickness: 4 mm
- Cover Screw Quantity: 4
- Weight: 0.5 kg
- Material: Polyester
- Finish: Smooth
- Color: Squirrel Gray
- Color Code: RAL 7000
- UPC: 783510502256
- EAN: 8713574090811
- Standard Packaging Quantity: 1.0000
- Packing Quantity: 1.0000
- Mounting method (EF000003): Surface mounted
More info
▲Features
- Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
- Material: Glass fibre reinforced polyester.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
- Flammability: UL94 V-0.
- Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
- Finish: RAL 7000.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
- Note: Mounting plate, GMP, and hinges, HHI, are available separately.
| Atributo del producto | Valor |
|---|---|
| Height | 75 mm |
| Width | 160 mm |
| Depth | 75 mm |
| Body Thickness | 3.5 mm |
| Cover Thickness | 4 mm |
| Cover Screw Quantity | 4 |
| Weight | 0.5 kg |
| Material | Polyester |
| Finish | Smooth |
| Color | Squirrel Gray |
| Color Code | RAL 7000 |
| UPC | 783510502256 |
| EAN | 8713574090811 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
