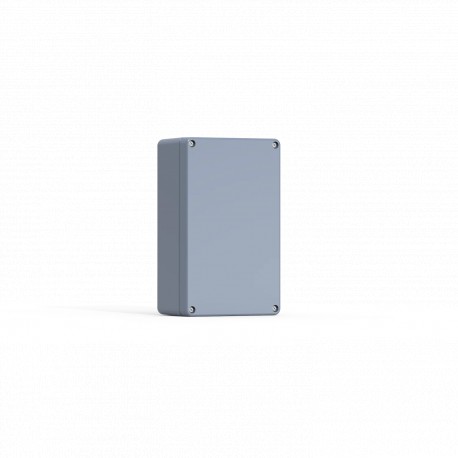

ELDON MGRP081108GE MGRP081108GE ELDON Terminal box, 75x110x75 MGRP081108GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MGRP081108GE ELDON Terminal box, 75x110x75 MGRP081108GE

MGRP081108GE

081108

ELDON

1 Pcs.

Terminal box, 75x110x75 MGRP081108GE Box for terminals, 75x110x75, without MARKER, polyester, IP66 Terminal box, 75x110x75, no MP, polyester, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The MGRP081108GE ELDON Terminal box, 75x110x75 MGRP081108GE is a small-scale plastic junction box deployed for organizing minor wiring splices and electronic elements safely. Surface-mounted terminal boxes provide quick installation options across general industrial plants and machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Surface mounted
  • Type of covering (EF000339): Cover
  • Cover model (EF009212): Closed
  • Transparent cover/door (EF006244): No
  • With lock (EF006306): No
  • Height (EF000040): 75.00 mm
  • Width (EF000008): 110.00 mm
  • Depth (EF000049): 75.00 mm
  • RAL-number (EF000116): 7.00
  • Number of modules (EF004427): 0.00
  • Number of rows (EF000266): 0.00
  • Number of openings for flange plates (EF009554): 0.00
  • Extension possible (EF001088): No
  • Number of conduit inlets (EF000437): 0.00
  • Housing material (EF001596): Plastic
  • With mounting plate (EF000118): No

More info

▲

Features

  • Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
  • Material: Glass fibre reinforced polyester.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
  • Flammability: UL94 V-0.
  • Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
  • Finish: RAL 7000.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
  • Note: Mounting plate, GMP, and hinges, HHI, are available separately.
