View larger
Images are for illustrative purposes only. Please refer to data sheet for details

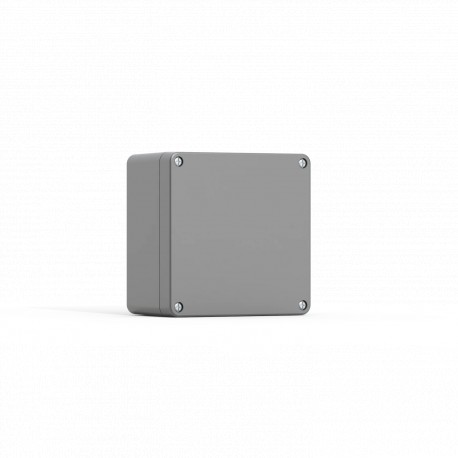

HALP060604GE ELDON Terminal box, 64x58x36 HALP060604GE
HALP060604GE
060604
ELDON
1 Pcs.
Terminal box, 64x58x36 HALP060604GE
Box for terminals, 64x58x36, without MP, aluminium, IP66
Terminal box, 64x58x36, no MP, aluminium, IP66
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Material: Aluminium alloy EN AC-47100.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -30 ºC to +80 ºC.
- Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
- Finish: RAL 7001.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 64mm |
| Width (W) | 57mm |
| Depth (D) | 36mm |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Silver Grey |
| Color Code | RAL 7001 |
| Body Thickness | 3.5mm |
| Cover Thickness | 3mm |
| Cover Screw Quantity | 4 |
| Weight | 0.1kg |
| UPC | 783510482060 |
| EAN | 8713574089174 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Cover |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | None |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | No |
| Height (EF000040) | 64.00 mm |
| Width (EF000008) | 58.00 mm |
| Depth (EF000049) | 36.00 mm |
| RAL-number (EF000116) | 7.00 |
| Number of modules (EF004427) | 0.00 |
| Number of rows (EF000266) | 0.00 |
| Number of openings for flange plates (EF009554) | 0.00 |
| Extension possible (EF001088) | No |
| Number of conduit inlets (EF000437) | 0.00 |
| Housing material (EF001596) | Aluminium |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Protection class according to IEC 61140 (EF000004) | I |
| Impact strength (EF004293) | IK07 |
| Circuit integrity (EF001613) | None |
