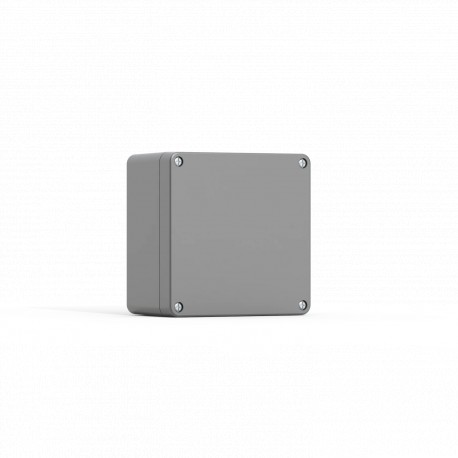

ELDON HALP061504GE HALP061504GE ELDON Terminal box, 64x150x36 HALP061504GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HALP061504GE ELDON Terminal box, 64x150x36 HALP061504GE

HALP061504GE

061504

ELDON

1 Pcs.

Terminal box, 64x150x36 HALP061504GE Box for terminals, 64x150x36, without MP, aluminium, IP66 Terminal box, 64x150x36, no MP, aluminium, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

HALP061504GE ELDON Terminal box, 64x150x36 HALP061504GE is a low-profile aluminum terminal enclosure built to house specialized circuitry, sensors, and wiring terminations. Aluminum junction boxes offer high durability, effective shielding properties, and reliable performance in demanding industrial sectors.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (H): 64mm
  • Width (W): 150mm
  • Depth (D): 36mm
  • Material: Aluminum
  • Finish: Powder Coated
  • Color: Silver Grey
  • Color Code: RAL 7001
  • Body Thickness: 3.5mm
  • Cover Thickness: 3mm
  • Cover Screw Quantity: 4
  • Weight: 0.3kg
  • UPC: 783510482121
  • EAN: 8713574089198
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Mounting method (EF000003): Surface mounted

More info

▲

Features

  • Material: Aluminium alloy EN AC-47100.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -30 ºC to +80 ºC.
  • Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
  • Finish: RAL 7001.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.
Atributo del producto Valor
Height (H)64mm
Width (W)150mm
Depth (D)36mm
MaterialAluminum
FinishPowder Coated
ColorSilver Grey
Color CodeRAL 7001
Body Thickness3.5mm
Cover Thickness3mm
Cover Screw Quantity4
Weight0.3kg
UPC783510482121
EAN8713574089198
Standard Packaging Quantity1
Packing Quantity1
