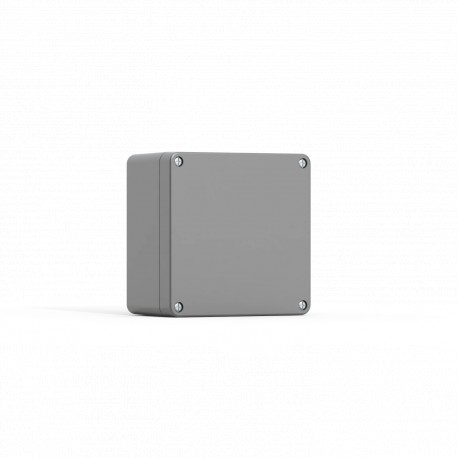

ELDON HALP050503GE HALP050503GE ELDON Terminal box, 45x50x30 HALP050503GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HALP050503GE ELDON Terminal box, 45x50x30 HALP050503GE

HALP050503GE

050503

ELDON

1 Pcs.

Terminal box, 45x50x30 HALP050503GE Box for terminals, 45x50x30, without MP, aluminium, IP66 Terminal box, 45x50x30, no MP, aluminium, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Housing sensitive miniature electronics and terminal points, the HALP050503GE ELDON Terminal box, 45x50x30 HALP050503GE delivers robust metallic protection for small-scale electrical junctions. Aluminum terminal boxes are commonly selected for industrial automation environments where durability and compact footprint are critical for safeguarding delicate circuitry.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Surface mounted
  • Type of covering (EF000339): Cover
  • Cover model (EF009212): Closed
  • Transparent cover/door (EF006244): No
  • With lock (EF006306): No
  • Height (EF000040): 45.00 mm
  • Width (EF000008): 50.00 mm
  • Depth (EF000049): 30.00 mm
  • RAL-number (EF000116): 7.00
  • Number of modules (EF004427): 0.00
  • Number of rows (EF000266): 0.00
  • Number of openings for flange plates (EF009554): 0.00
  • Extension possible (EF001088): No
  • Number of conduit inlets (EF000437): 0.00
  • Housing material (EF001596): Aluminium
  • With mounting plate (EF000118): No

More info

▲

Features

  • Material: Aluminium alloy EN AC-47100.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -30 ºC to +80 ºC.
  • Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
  • Finish: RAL 7001.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
