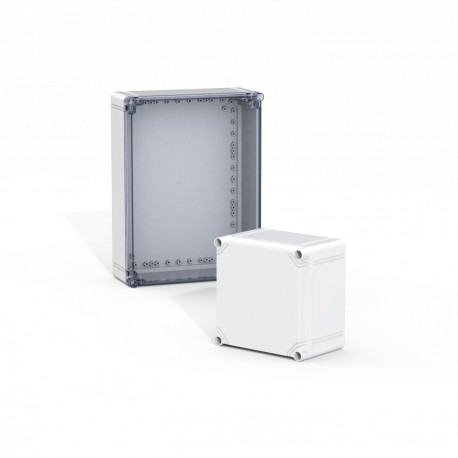

ELDON OABP406013TE OABP406013TE ELDON Terminal box, 400x600x132 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OABP406013TE ELDON Terminal box, 400x600x132

OABP406013TE

406013

ELDON

1 Pcs.

Terminal box, 400x600x132 Box for terminals, 400x600x132, transparent cover, without PW, ABS, IP66 Terminal box, 400x600x132, transparent cover, no MP, ABS, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a dependable protective enclosure, the OABP406013TE ELDON Terminal box, 400x600x132 safeguards terminal strips, relays, and electronic control devices from ambient moisture and dust. ABS terminal boxes provide a sturdy, lightweight housing solution for diverse industrial wiring applications.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 400 mm
  • Width: 600 mm
  • Depth: 132 mm
  • Cover Style: Clear
  • Max Mounting Depth: 115 mm
  • Weight: 4.1 kg
  • Material: ABS
  • Finish: Smooth
  • Color: Light Gray
  • Color Code: RAL 7035
  • UPC: 783510524081
  • EAN: 6418677198533
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000
  • Mounting method (EF000003): Surface mounted
  • Type of covering (EF000339): Cover

More info

▲

Features

  • Description: ABS box, halogen-free, suitable for indoor use. Low UV radiation resistance.
  • Material: Body: ABS. Plain cover: ABS. Transparent cover: polycarbonate.
  • Gasket: Polyurethane gasket integrated in the box cover.
  • Temperature resistance: -40 °C to +60 °C.
  • Flammability: UL94 HB.
  • Protection: IP 66, 67 IK 06 (-25 °C), IK 07 (+35 °C).
  • Finish: RAL 7035.
  • Delivery: Body, cover, cover screws manufactured from polyamide and mounting screws.
  • The installed components inside the terminal box will be safe and secure due to the high protection degree
  • Customers can receive terminal boxes with a short delivery time, that match their size requirements
  • This will also remove any extra costs due to oversizing
  • Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box
  • If necessary, deeper components can be installed when the expansion frame, OPCP-EE, has been mounted.
  • The mounting plate, OMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box
  • The expansion frame, OPCP-EE, should be ordered if a deeper terminal box is required
  • Inner depth (mm): 115
Atributo del producto Valor
Height400 mm
Width600 mm
Depth132 mm
Cover StyleClear
Max Mounting Depth115 mm
Weight4.1 kg
MaterialABS
FinishSmooth
ColorLight Gray
Color CodeRAL 7035
UPC783510524081
EAN6418677198533
Standard Packaging Quantity1.0000
Packing Quantity1.0000
