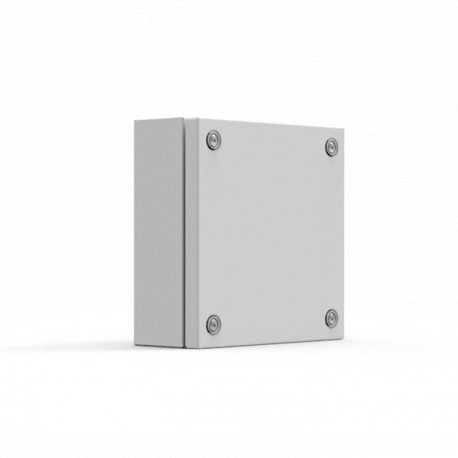

SSTB303012-316 ELDON Terminal box, 300x300x120 SSTB303012-316
SSTB303012-316
303012
ELDON
1 Pcs.
Terminal box, 300x300x120 SSTB303012-316
Box for terminals, 300x300x120, without MARKER, stainless steel 316, IP66
Terminal Box, SSTB, 300x300x120mm, Brushed, Stainless 316
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
- Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Gasket: Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66 TYPE 4X, 12 IK 08.
- Finish: 400 pre-grained stainless steel.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height | 300mm |
| Width | 300mm |
| Depth | 120mm |
| Material | Stainless Steel 316 |
| Weight | 3.45kg |
| Finish | Brushed |
| Body Thickness | 1mm |
| Door Thickness | 1.5mm |
| UPC | 783510529239 |
| EAN | 8713574193666 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
| Material (EF002169) | |
| Material quality (EF001257) | |
| Surface finishing (EF006569) | |
| Colour (EF000007) | |
| RAL-number (EF000116) | |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | |
| Mounting plate depth-adjustable (EF006054) | |
| Suitable for wall built-in (EF007536) | |
| Pole fastening (EF009582) | |
| Number of doors (EF000122) | |
| Number of locks (EF000123) | |
| Suitable for metrical mounting (EF005823) | |
| Pitched roof (EF009278) | |
| EMC-version (EF001062) | |
| With glazed door (EF001089) | |
| With ventilation door (EF006279) | |
| With rear door (EF007381) | |
| Impact strength (EF004293) | |
| Degree of protection (IP) (EF005474) | |
| Degree of protection (NEMA) (EF011959) | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
