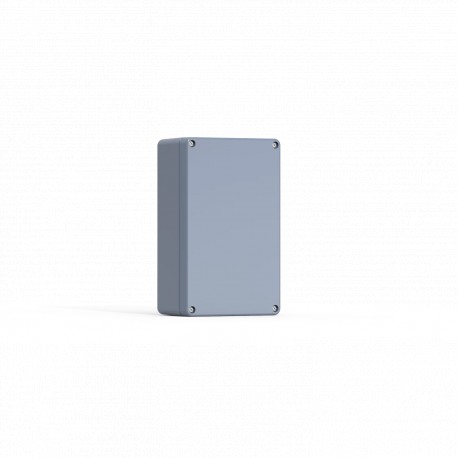

ELDON MGRP254012GE MGRP254012GE ELDON Terminal box, 250x400x120 MGRP254012GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MGRP254012GE ELDON Terminal box, 250x400x120 MGRP254012GE

MGRP254012GE

254012

ELDON

1 Pcs.

Terminal box, 250x400x120 MGRP254012GE Box for terminals, 250x400x120, without MARKER, polyester, IP66 Terminal box, 250x400x120, no MP, polyester, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Features

  • Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
  • Material: Glass fibre reinforced polyester.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
  • Flammability: UL94 V-0.
  • Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
  • Finish: RAL 7000.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
  • Note: Mounting plate, GMP, and hinges, HHI, are available separately.
Atributo del producto Valor
Height250 mm
Width400 mm
Depth120 mm
Body Thickness6 mm
Cover Thickness5 mm
Cover Screw Quantity4
Weight4 kg
MaterialPolyester
FinishSmooth
ColorSquirrel Gray
Color CodeRAL 7000
UPC783510502669
EAN8713574090910
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for MGRP254012GE Distribution boards (EC000058)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Type of covering (EF000339) Cover
Cover model (EF009212) Closed
Type of door (EF004464) None
Transparent cover/door (EF006244) false
With lock (EF006306) false
Nominal current (In) (EF008873) None A
Height (EF000040) 250.00 mm
Width (EF000008) 400.00 mm
Depth (EF000049) 120.00 mm
Built-in depth (EF000218) None mm
Inner depth (EF001131) None mm
Material plate thickness cabinet (EF009170) None mm
Material plate thickness door/cover (EF009171) None mm
Colour (EF000007)
RAL-number (EF000116) 7.00
Number of modules (EF004427) 0.00
Number of rows (EF000266) 0.00
Width in number of modular spacings (EF002950)
Number of openings for flange plates (EF009554) 0.00
Extension possible (EF001088) false
Number of conduit inlets (EF000437) 0.00
Housing material (EF001596) Plastic
Surface protection (EF000139)
With mounting plate (EF000118) false
Suitable for outdoor use (EF003532) true
Suitable for lightning protection (EF007800) false
Degree of protection (IP) (EF005474) IP67
Degree of protection (NEMA) (EF011959)
Protection class according to IEC 61140 (EF000004) II
Impact strength (EF004293) IK07
Circuit integrity (EF001613) None
Cover with overpressure release (EF015940)
