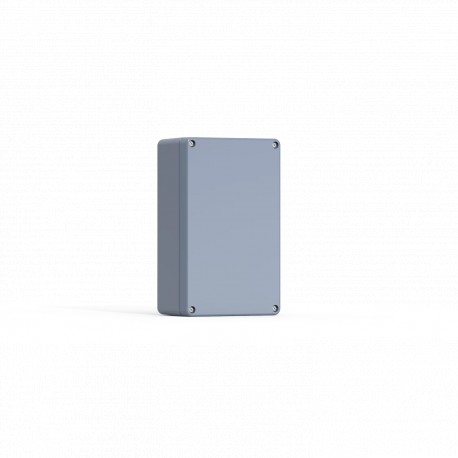

ELDON MGRP252612GE MGRP252612GE ELDON Terminal box, 250x255x120 MGRP252612GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MGRP252612GE ELDON Terminal box, 250x255x120 MGRP252612GE

MGRP252612GE

252612

ELDON

1 Pcs.

Terminal box, 250x255x120 MGRP252612GE Box for terminals, 250x255x120, without MARKER, polyester, IP66 Terminal box, 250x255x120, no MP, polyester, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing heavy-duty containment for industrial electrical wiring, this Eldon polyester terminal box (MGRP252612GE) is engineered for demanding surface-mounted applications. Polyester enclosures deliver exceptional chemical and thermal resistance in harsh processing environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 250mm
  • Width: 255mm
  • Depth: 120mm
  • Body Thickness: 6mm
  • Cover Thickness: 5mm
  • Cover Screw Quantity: 4
  • Weight: 2.8kg
  • Material: Polyester
  • Finish: Smooth
  • Color: Squirrel Gray
  • Color Code: RAL 7000
  • UPC: 783510502638
  • EAN: 8713574090903
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Mounting method (EF000003): Surface mounted

More info

▲

Features

  • Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
  • Material: Glass fibre reinforced polyester.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
  • Flammability: UL94 V-0.
  • Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
  • Finish: RAL 7000.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
  • Note: Mounting plate, GMP, and hinges, HHI, are available separately.
Atributo del producto Valor
Height250mm
Width255mm
Depth120mm
Body Thickness6mm
Cover Thickness5mm
Cover Screw Quantity4
Weight2.8kg
MaterialPolyester
FinishSmooth
ColorSquirrel Gray
Color CodeRAL 7000
UPC783510502638
EAN8713574090903
Standard Packaging Quantity1
Packing Quantity1
