HALP234011GE ELDON Terminal box, 230x400x110 HALP234011GE
HALP234011GE
234011
ELDON
1 Pcs.
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

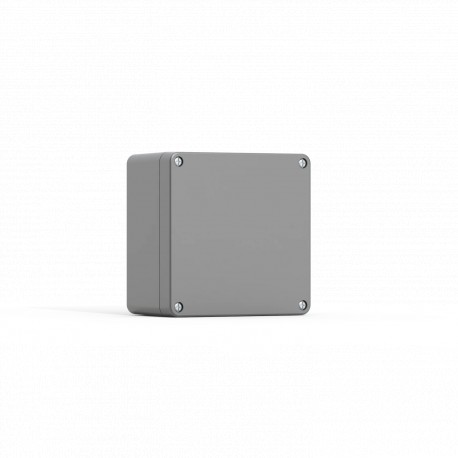

The HALP234011GE ELDON Terminal box, 230x400x110 HALP234011GE is an aluminum junction box designed to house and protect electrical control components and wiring blocks. Aluminum enclosures offer superior structural rigidity and environmental defense in demanding industrial settings.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (H): 230mm
- Width (W): 400mm
- Depth (D): 110mm
- Material: Aluminum
- Finish: Powder Coated
- Color: Silver Grey
- Color Code: RAL 7001
- Body Thickness: 4.1mm
- Cover Thickness: 3.7mm
- Cover Screw Quantity: 4
- Weight: 4.2kg
- UPC: 783510482633
- EAN: 8713574089365
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Mounting method (EF000003): Surface mounted
More info
▲Features
- Material: Aluminium alloy EN AC-47100.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -30 ºC to +80 ºC.
- Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
- Finish: RAL 7001.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 230mm |
| Width (W) | 400mm |
| Depth (D) | 110mm |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Silver Grey |
| Color Code | RAL 7001 |
| Body Thickness | 4.1mm |
| Cover Thickness | 3.7mm |
| Cover Screw Quantity | 4 |
| Weight | 4.2kg |
| UPC | 783510482633 |
| EAN | 8713574089365 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
