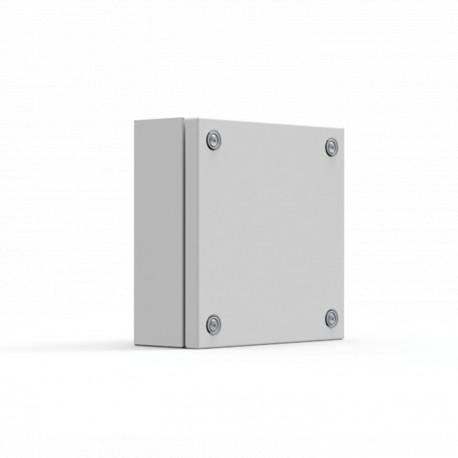

STB208012 ELDON Terminal box, 200x800x120 STB208012
STB208012
208012
ELDON
1 Pcs.
Terminal box, 200x800x120 STB208012
Box for terminals, 200x800x120, no MP, mild steel, IP66
Terminal Box, STB, 200x800x120mm, Light Gray, Mild Steel
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The STB208012 Eldon terminal box provides a compact junction housing for electrical connections and wiring management in industrial automation setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width: 800.00 mm
- Height: 200.00 mm
- Depth: 120.00 mm
- Material: Steel
- Surface finishing: Powder coated
- Colour: Grey
- RAL-number: 7035.00
- With mounting plate: No
- With rear door: No
- Mounting plate depth-adjustable: No
- Suitable for wall built-in: No
- Pole fastening: No
- Number of doors: 1.00
- Number of locks: 4.00
- Suitable for metrical mounting: No
- Pitched roof: No
- EMC-version: No
More info
▲Features
- Material: 1.2 mm mild steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
- Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66, TYPE 4, 12, IK 08.
- Finish: RAL 7035, structured powder coating.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
