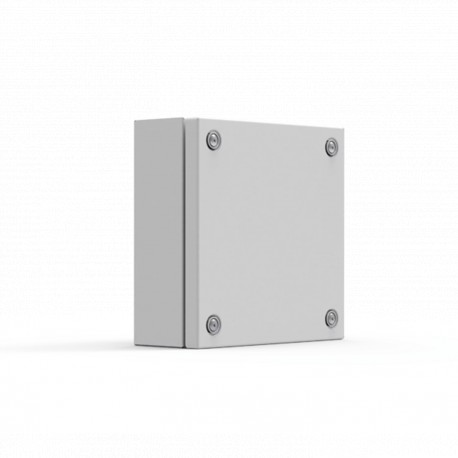

STB206012 ELDON Terminal box, 200x600x120 STB206012
STB206012
206012
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eldon terminal box serves as a secure junction point for terminating control cables and housing electrical connection blocks in industrial applications. These compact steel boxes protect internal splices and terminal strips from ambient dust, minor liquid exposure, and mechanical impact.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 200mm
- Width: 600mm
- Depth: 120mm
- Weight: 5kg
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.2mm
- Door Thickness: 1.2mm
- UPC: 783510529543
- EAN: 8713574158221
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 600.00 mm
- Height (EF000040): 200.00 mm
More info
▲Features
- Material: 1.2 mm mild steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
- Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66, TYPE 4, 12, IK 08.
- Finish: RAL 7035, structured powder coating.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height | 200mm |
| Width | 600mm |
| Depth | 120mm |
| Weight | 5kg |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.2mm |
| Door Thickness | 1.2mm |
| UPC | 783510529543 |
| EAN | 8713574158221 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
