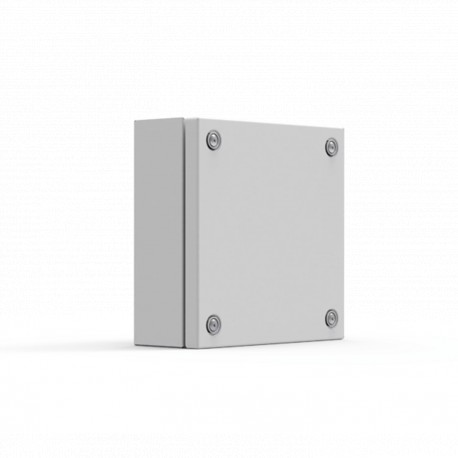

STB205012 ELDON Terminal box, 200x500x120 STB205012
STB205012
205012
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A terminal box houses electrical junction points, wiring connections, and terminal blocks to protect local circuit interfaces from dust and moisture. These compact enclosures are widely utilized across manufacturing plants to organize field wiring and facilitate system maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 200mm
- Width (W): 500mm
- Depth (D): 120mm
- Weight: 4.3kg
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.2mm
- Door Thickness: 1.2mm
- UPC: 783510529536
- EAN: 8713574158214
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 500.00 mm
- Height (EF000040): 200.00 mm
More info
▲Features
- Material: 1.2 mm mild steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
- Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66, TYPE 4, 12, IK 08.
- Finish: RAL 7035, structured powder coating.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 200mm |
| Width (W) | 500mm |
| Depth (D) | 120mm |
| Weight | 4.3kg |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.2mm |
| Door Thickness | 1.2mm |
| UPC | 783510529536 |
| EAN | 8713574158214 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
