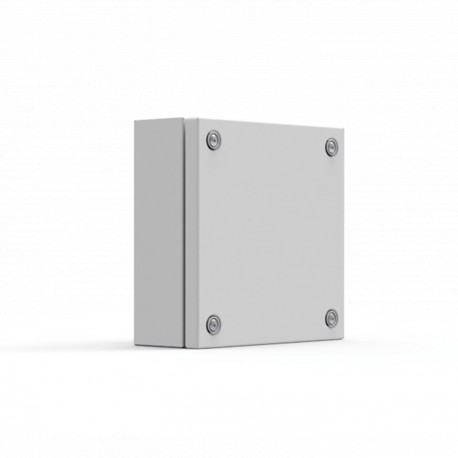

SSTB204008 ELDON Terminal box, 200x400x80 SSTB204008
SSTB204008
204008
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eldon terminal box serves as a protective enclosure designed to house wiring junctions, terminal blocks, and low-voltage electrical connections in industrial applications. These compact boxes shield internal circuitry from harsh operating conditions, dust, and moisture ingress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 200mm
- Width (W): 400mm
- Depth (D): 80mm
- Gasket Type: Polyurethane
- Material: Stainless Steel 304
- Weight: 2.9kg
- Finish: Brushed
- Body Thickness: 1mm
- Door Thickness: 1.5mm
- UPC: 783510529062
- EAN: 8713574160040
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 400.00 mm
- Height (EF000040): 200.00 mm
- Depth (EF000049): 80.00 mm
More info
▲Features
- Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
- Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Gasket: Sealing is ensured by an injected polyurethane gasket or by an injected silicone gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66 TYPE 4X, 12 IK 08.
- Finish: 400 pre-grained stainless steel.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 200mm |
| Width (W) | 400mm |
| Depth (D) | 80mm |
| Gasket Type | Polyurethane |
| Material | Stainless Steel 304 |
| Weight | 2.9kg |
| Finish | Brushed |
| Body Thickness | 1mm |
| Door Thickness | 1.5mm |
| UPC | 783510529062 |
| EAN | 8713574160040 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
