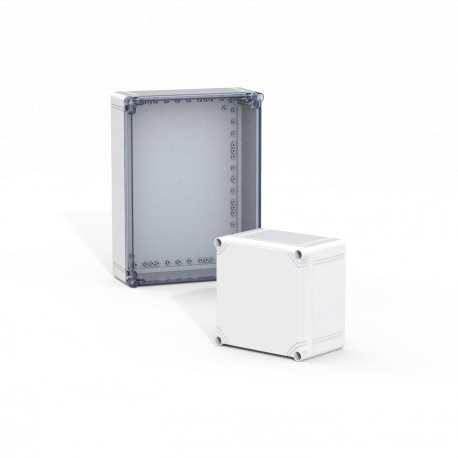

ELDON OPCP204013TE OPCP204013TE ELDON Terminal box, 200x400x130 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OPCP204013TE ELDON Terminal box, 200x400x130

OPCP204013TE

204013

ELDON

1 Pcs.

Terminal box, 200x400x130 Box for terminals, 200x400x130, transparent cover, without MP, polycarbonate, IP66 Terminal box, 200x400x130, transparent cover, no MP, polycarbonate, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Features

  • Description: Polycarbonate box, halogen-free, suitable for outdoor use. High UV radiation resistance. Self-extinguishing.
  • Material: Polycarbonate.
  • Gasket: Polyurethane gasket integrated in the box cover.
  • Temperature resistance: -40 °C to +80 °C.
  • Flammability: UL746C 5V.
  • Protection: IP 66, 67 IK 08 (-25 °C … +35 °C).
  • Finish: RAL 7035.
  • Approvals: CE, GOST. For cULus_UL Listed, please contact our sales department.
  • Delivery: Body, cover, cover screws manufactured from polyamide and mounting screws.
  • Customers can receive terminal boxes with a short delivery time, that match their size requirements which can be installed in both indoor and outdoor environments, even in locations where there is direct sunlight
  • This will also remove any extra costs due to oversizing
  • Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box
  • If necessary, deeper components can be installed when the expansion frame, OPCP-EE, has been mounted
  • The mounting plate, OMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box
  • The expansion frame, OPCP-EE, should be ordered if a deeper terminal box is required
  • Inner depth (mm): 115
Atributo del producto Valor
Height (H)200 mm
Width (W)400 mm
Depth (D)132 mm
Cover StyleClear
Max Mounting Depth115 mm
Weight2 kg
MaterialPolycarbonate
FinishSmooth
ColorLight Gray
Color CodeRAL 7035
UPC783510524760
EAN6418677198359
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for OPCP204013TE Distribution boards (EC000058)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Type of covering (EF000339) Cover
Cover model (EF009212) Closed
Type of door (EF004464) None
Transparent cover/door (EF006244) true
With lock (EF006306) false
Nominal current (In) (EF008873) None A
Height (EF000040) 200.00 mm
Width (EF000008) 400.00 mm
Depth (EF000049) 132.00 mm
Built-in depth (EF000218) None mm
Inner depth (EF001131) None mm
Material plate thickness cabinet (EF009170) None mm
Material plate thickness door/cover (EF009171) None mm
Colour (EF000007)
RAL-number (EF000116) 7.04
Number of modules (EF004427) 0.00
Number of rows (EF000266) 0.00
Width in number of modular spacings (EF002950)
Number of openings for flange plates (EF009554) 0.00
Extension possible (EF001088) false
Number of conduit inlets (EF000437) 0.00
Housing material (EF001596) Plastic
Surface protection (EF000139)
With mounting plate (EF000118) false
Suitable for outdoor use (EF003532) true
Suitable for lightning protection (EF007800) false
Degree of protection (IP) (EF005474) IP67
Degree of protection (NEMA) (EF011959)
Protection class according to IEC 61140 (EF000004) II
Impact strength (EF004293) IK07
Circuit integrity (EF001613) None
Cover with overpressure release (EF015940)
