View larger
Images are for illustrative purposes only. Please refer to data sheet for details

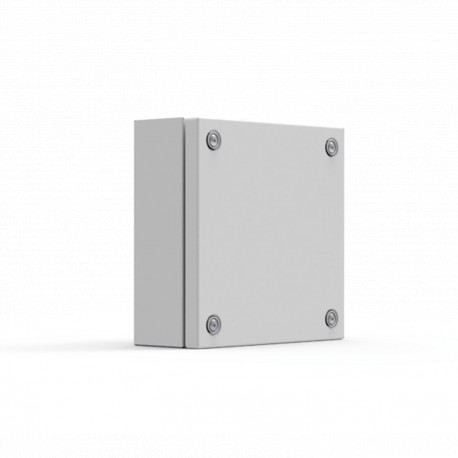

SSTB203008 ELDON Terminal box, 200x300x80 SSTB203008
SSTB203008
203008
ELDON
1 Pcs.
Terminal box, 200x300x80 SSTB203008
Box for terminals, 200x300x80, without MP, stainless 304, IP66
Terminal Box, SSTB, 200x300x80mm, Brushed, Stainless 304
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
- Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Gasket: Sealing is ensured by an injected polyurethane gasket or by an injected silicone gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66 TYPE 4X, 12 IK 08.
- Finish: 400 pre-grained stainless steel.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 200mm |
| Width (W) | 300mm |
| Depth (D) | 80mm |
| Gasket Type | Polyurethane |
| Material | Stainless Steel 304 |
| Weight | 2.3kg |
| Finish | Brushed |
| Body Thickness | 1mm |
| Door Thickness | 1.5mm |
| UPC | 783510529024 |
| EAN | 8713574160026 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 300.00 mm |
| Height (EF000040) | 200.00 mm |
| Depth (EF000049) | 80.00 mm |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface finishing (EF006569) | Brushed |
| Colour (EF000007) | Other |
| With mounting plate (EF000118) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Suitable for wall built-in (EF007536) | No |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 4.00 |
| Suitable for metrical mounting (EF005823) | No |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK08 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
