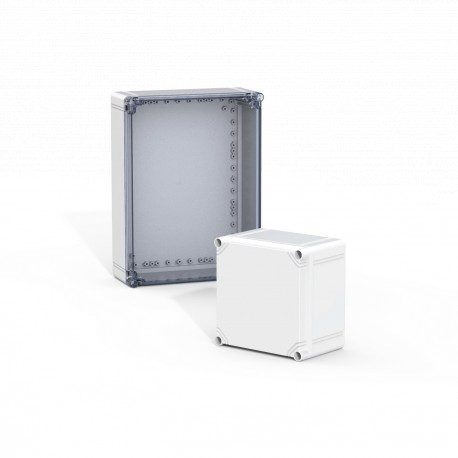

ELDON OPCP203013GE OPCP203013GE ELDON Terminal box, 200x300x130 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OPCP203013GE ELDON Terminal box, 200x300x130

OPCP203013GE

203013

ELDON

1 Pcs.

Terminal box, 200x300x130 Box for terminals, 200x300x130, grey cover, without MP, polycarbonate, IP66 Terminal box, 200x300x130, Grey cover, no MP, polycarbonate, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The OPCP203013GE ELDON Terminal box, 200x300x130 is a robust polycarbonate junction box used to shield electrical wiring terminations from harsh industrial elements. Such enclosures prevent corrosion and moisture ingress around sensitive terminal setups in automated processing lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (H): 200mm
  • Width (W): 300mm
  • Depth (D): 132mm
  • Cover Style: Grey
  • Max Mounting Depth: 115mm
  • Weight: 1.7kg
  • Material: Polycarbonate
  • Finish: Smooth
  • Color: Light Gray
  • Color Code: RAL 7035
  • UPC: 783510524722
  • EAN: 6418677198274
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Mounting method (EF000003): Surface mounted
  • Type of covering (EF000339): Cover

More info

▲

Features

  • Description: Polycarbonate box, halogen-free, suitable for outdoor use. High UV radiation resistance. Self-extinguishing.
  • Material: Polycarbonate.
  • Gasket: Polyurethane gasket integrated in the box cover.
  • Temperature resistance: -40 °C to +80 °C.
  • Flammability: UL746C 5V.
  • Protection: IP 66, 67 IK 08 (-25 °C … +35 °C).
  • Finish: RAL 7035.
  • Approvals: CE, GOST. For cULus_UL Listed, please contact our sales department.
  • Delivery: Body, cover, cover screws manufactured from polyamide and mounting screws.
  • Customers can receive terminal boxes with a short delivery time, that match their size requirements which can be installed in both indoor and outdoor environments, even in locations where there is direct sunlight
  • This will also remove any extra costs due to oversizing
  • Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box
  • If necessary, deeper components can be installed when the expansion frame, OPCP-EE, has been mounted
  • The mounting plate, OMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box
  • The expansion frame, OPCP-EE, should be ordered if a deeper terminal box is required
  • Inner depth (mm): 115
Atributo del producto Valor
Height (H)200mm
Width (W)300mm
Depth (D)132mm
Cover StyleGrey
Max Mounting Depth115mm
Weight1.7kg
MaterialPolycarbonate
FinishSmooth
ColorLight Gray
Color CodeRAL 7035
UPC783510524722
EAN6418677198274
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
