View larger
Images are for illustrative purposes only. Please refer to data sheet for details

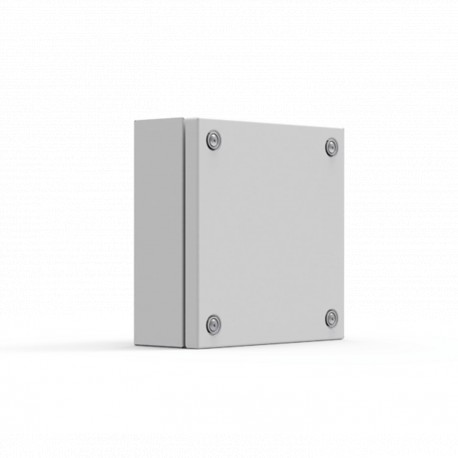

STB202008 ELDON Terminal box, 200x200x80 STB202008
STB202008
202008
ELDON
1 Pcs.
Terminal box, 200x200x80 STB202008
Box for terminals, 200x200x80, no MP, mild steel, IP66
Terminal Box, STB, 200x200x80mm, Light Gray, Mild Steel
Automation > Enclosure/switchgear cabinet (empty)
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Material: 1.2 mm mild steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
- Gasket: Sealing is ensured by an injected one piece polyurethane gasket.
- Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
- Protection: IP 66, TYPE 4, 12, IK 08.
- Finish: RAL 7035, structured powder coating.
- Delivery: Body, cover, cover screws, fixing screws, cover plugs, and earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height | 200 mm |
| Width | 200 mm |
| Depth | 80 mm |
| Weight | 1.8 kg |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.2 mm |
| Door Thickness | 1.2 mm |
| UPC | 783510529451 |
| EAN | 8713574158153 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 200.00 mm |
| Height (EF000040) | 200.00 mm |
| Depth (EF000049) | 80.00 mm |
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface finishing (EF006569) | Powder coating |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035.00 |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | false |
| Mounting plate depth-adjustable (EF006054) | false |
| Suitable for wall built-in (EF007536) | false |
| Pole fastening (EF009582) | false |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 4.00 |
| Suitable for metrical mounting (EF005823) | false |
| Pitched roof (EF009278) | false |
| EMC-version (EF001062) | false |
| With glazed door (EF001089) | false |
| With ventilation door (EF006279) | false |
| With rear door (EF007381) | false |
| Impact strength (EF004293) | IK08 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
