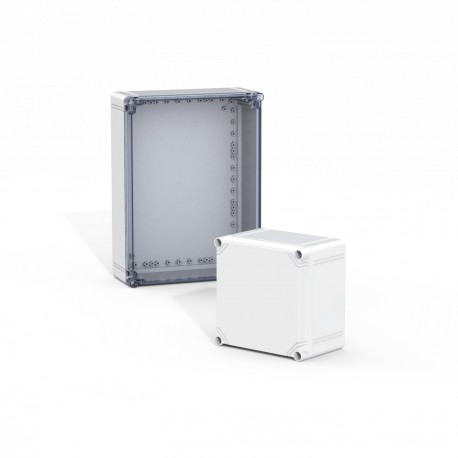

OABP202013TE ELDON Terminal box, 200x200x132
OABP202013TE
202013
ELDON
1 Pcs.
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing secure containment for electrical wiring and terminal blocks, this Eldon terminal box carries part number OABP202013TE and features a clear cover for visual inspection. Protective enclosures are standard throughout industrial automation setups to shield critical connection points from dust and moisture.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 200 mm
- Width: 200 mm
- Depth: 132 mm
- Cover Style: Clear
- Max Mounting Depth: 115 mm
- Weight: 1.1 kg
- Material: ABS
- Finish: Smooth
- Color: Light Gray
- Color Code: RAL 7035
- UPC: 783510523947
- EAN: 6418677198472
- Standard Packaging Quantity: 1.0000
- Packing Quantity: 1.0000
- Mounting method (EF000003): Surface mounted
- Type of covering (EF000339): Cover
More info
▲Features
- Description: ABS box, halogen-free, suitable for indoor use. Low UV radiation resistance.
- Material: Body: ABS. Plain cover: ABS. Transparent cover: polycarbonate.
- Gasket: Polyurethane gasket integrated in the box cover.
- Temperature resistance: -40 °C to +60 °C.
- Flammability: UL94 HB.
- Protection: IP 66, 67 IK 06 (-25 °C), IK 07 (+35 °C).
- Finish: RAL 7035.
- Delivery: Body, cover, cover screws manufactured from polyamide and mounting screws.
- The installed components inside the terminal box will be safe and secure due to the high protection degree
- Customers can receive terminal boxes with a short delivery time, that match their size requirements
- This will also remove any extra costs due to oversizing
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box
- If necessary, deeper components can be installed when the expansion frame, OPCP-EE, has been mounted.
- The mounting plate, OMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box
- The expansion frame, OPCP-EE, should be ordered if a deeper terminal box is required
- Inner depth (mm): 115
| Atributo del producto | Valor |
|---|---|
| Height | 200 mm |
| Width | 200 mm |
| Depth | 132 mm |
| Cover Style | Clear |
| Max Mounting Depth | 115 mm |
| Weight | 1.1 kg |
| Material | ABS |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510523947 |
| EAN | 6418677198472 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
