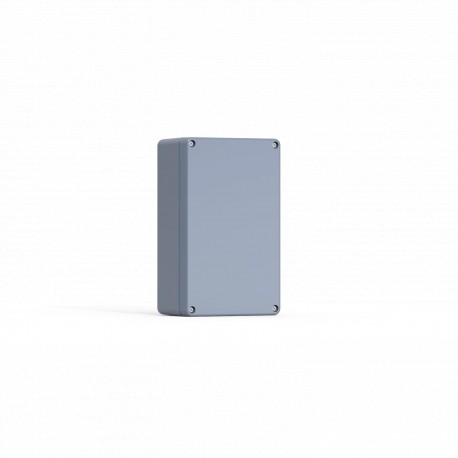

MGRP165609GE ELDON Terminal box, 160x560x90 MGRP165609GE
MGRP165609GE
165609
ELDON
1 Pcs.
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
MGRP165609GE ELDON Terminal box, 160x560x90 MGRP165609GE is an elongated polyester terminal housing designed to accommodate extended terminal strips or multiple control cables in industrial settings. Polyester enclosures deliver exceptional corrosion resistance and mechanical strength for harsh operating environments.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 160mm
- Width: 560mm
- Depth: 90mm
- Body Thickness: 6mm
- Cover Thickness: 5mm
- Cover Screw Quantity: 6
- Weight: 3.4kg
- Material: Polyester
- Finish: Smooth
- Color: Squirrel Gray
- Color Code: RAL 7000
- UPC: 783510502577
- EAN: 8713574090897
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Mounting method (EF000003): Surface mounted
More info
▲Features
- Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
- Material: Glass fibre reinforced polyester.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
- Flammability: UL94 V-0.
- Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
- Finish: RAL 7000.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
- Note: Mounting plate, GMP, and hinges, HHI, are available separately.
| Atributo del producto | Valor |
|---|---|
| Height | 160mm |
| Width | 560mm |
| Depth | 90mm |
| Body Thickness | 6mm |
| Cover Thickness | 5mm |
| Cover Screw Quantity | 6 |
| Weight | 3.4kg |
| Material | Polyester |
| Finish | Smooth |
| Color | Squirrel Gray |
| Color Code | RAL 7000 |
| UPC | 783510502577 |
| EAN | 8713574090897 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
