View larger
Images are for illustrative purposes only. Please refer to data sheet for details

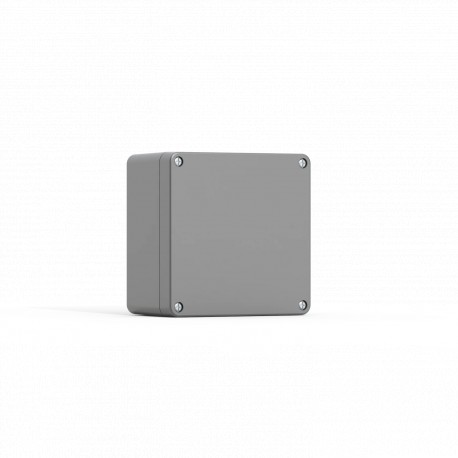

MGRP162609GE ELDON Terminal box, 160x260x90 MGRP162609GE
MGRP162609GE
162609
ELDON
1 Pcs.
Terminal box, 160x260x90 MGRP162609GE
Box for terminals, 160x260x90, without MARKER, polyester, IP66
Terminal box, 160x260x90, no MP, polyester, IP66
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
- Material: Glass fibre reinforced polyester.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
- Flammability: UL94 V-0.
- Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
- Finish: RAL 7000.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
- Note: Mounting plate, GMP, and hinges, HHI, are available separately.
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Cover |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | None |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | No |
| Height (EF000040) | 160.00 mm |
| Width (EF000008) | 260.00 mm |
| Depth (EF000049) | 90.00 mm |
| RAL-number (EF000116) | 7.00 |
| Number of modules (EF004427) | 0.00 |
| Number of rows (EF000266) | 0.00 |
| Number of openings for flange plates (EF009554) | 0.00 |
| Extension possible (EF001088) | No |
| Number of conduit inlets (EF000437) | 0.00 |
| Housing material (EF001596) | Plastic |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | IK07 |
| Circuit integrity (EF001613) | None |
