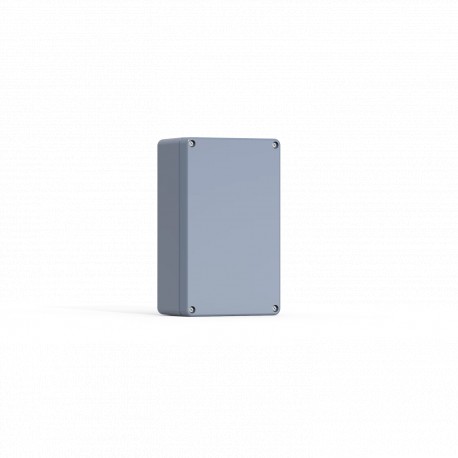

ELDON MGRP161609GE MGRP161609GE ELDON Terminal box, 160x160x90 MGRP161609GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MGRP161609GE ELDON Terminal box, 160x160x90 MGRP161609GE

MGRP161609GE

161609

ELDON

1 Pcs.

Terminal box, 160x160x90 MGRP161609GE Box for terminals, 160x160x90, without MARKER, polyester, IP66 Terminal box, 160x160x90, no MP, polyester, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

MGRP161609GE ELDON Terminal box, 160x160x90 MGRP161609GE provides a rugged polyester housing solution designed to safeguard critical wiring connections and terminal blocks in aggressive industrial atmospheres. Polyester junction boxes excel in chemical plants and outdoor installations due to their superior corrosion resistance.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 160mm
  • Width: 160mm
  • Depth: 90mm
  • Body Thickness: 6mm
  • Cover Thickness: 5mm
  • Cover Screw Quantity: 4
  • Weight: 1.3kg
  • Material: Polyester
  • Finish: Smooth
  • Color: Squirrel Gray
  • Color Code: RAL 7000
  • UPC: 783510502461
  • EAN: 8713574090866
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Mounting method (EF000003): Surface mounted

More info

▲

Features

  • Description: Polyester box. Suitable for outdoor use, UV-resistant according to UL746 C.
  • Material: Glass fibre reinforced polyester.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -40 °C to +100 °C with the standard polyurethane gasket; -60 °C to +130 °C with the silicone gasket; -35 °C to +100 °C with the EPDM gasket; -30 °C to +80 °C with the neoprene gasket.
  • Flammability: UL94 V-0.
  • Protection: IP 66, 67 IK 08, 07 for MGRP08080xGE.
  • Finish: RAL 7000.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body, cover and cover screws. Cover screws made of stainless steel.
  • Note: Mounting plate, GMP, and hinges, HHI, are available separately.
Atributo del producto Valor
Height160mm
Width160mm
Depth90mm
Body Thickness6mm
Cover Thickness5mm
Cover Screw Quantity4
Weight1.3kg
MaterialPolyester
FinishSmooth
ColorSquirrel Gray
Color CodeRAL 7000
UPC783510502461
EAN8713574090866
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
