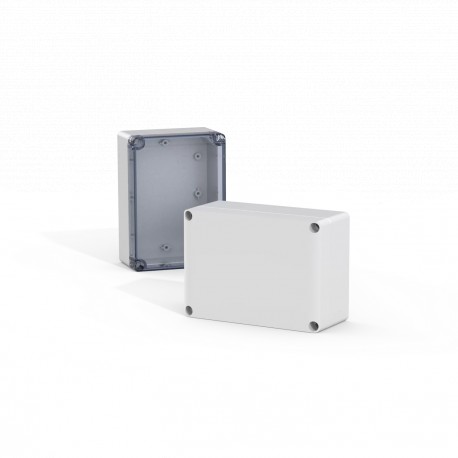

SABP131810TE ELDON Terminal box, 125x175x100
SABP131810TE
131810
ELDON
1 Pcs.
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A terminal box like the Eldon SABP131810TE provides a protected internal cavity for housing wire splices, terminations, and low-voltage electrical connections. These protective junction enclosures keep sensitive circuits organized and isolated from environmental exposure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 125mm
- Width (W): 175mm
- Depth (D): 100mm
- Weight: 0.4kg
- Material: ABS plastic
- Finish: Smooth
- Color: Light Gray
- Color Code: RAL 7035
- EAN: 6418677177880
- Standard Packaging Quantity: 1
- Packing Quantity: 1
More info
▲Features
- Description: ABS box, halogen-free, suitable for indoor use. Low UV radiation resistance.
- Material: Body: ABS. Plain cover: ABS. Transparent cover: polycarbonate.
- Gasket: Polyurethane gasket integrated in the box cover.
- Temperature resistance: -40 °C to +60 °C.
- Flammability: UL94 HB.
- Protection: IP 66, 67 IK 06 (-25 °C), IK 07 (+35 °C).
- Finish: RAL 7035.
- Delivery: Body, cover, cover screws manufactured from polyamide and mounting screws.
- Customers can choose terminal boxes that meet their size requirements, off the shelf
- The installed components inside the terminal box will be safe and secure due to the high protection degree
- Customers can receive terminal boxes with a short delivery time, that match their size requirements
- This will also remove any extra costs due to oversizing
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the terminal box
- The mounting plate, SMP, and DIN profiles, DR, have to be ordered separately, in order to complete the installation of the terminal box
- Note: Terminal box, with polycarbonate transparent cover fitted, can be ordered by replacing GE with TE in the item number
- erminal box manufactured from polycarbonate can be ordered by replacing SABP with SPCP in the item number
| Atributo del producto | Valor |
|---|---|
| Height (H) | 125mm |
| Width (W) | 175mm |
| Depth (D) | 100mm |
| Weight | 0.4kg |
| Material | ABS |
| Finish | Smooth |
| Color | Light Gray |
| Color Code | RAL 7035 |
| EAN | 6418677177880 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
