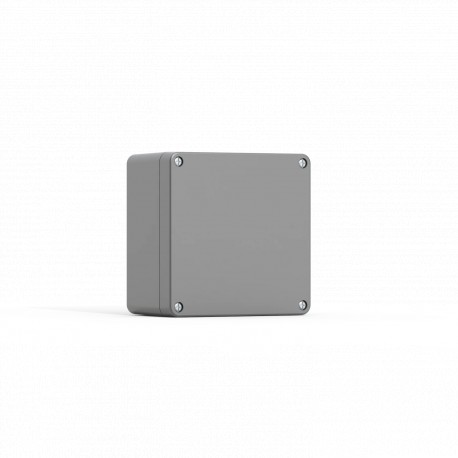

ELDON HALP123608GE HALP123608GE ELDON Terminal box, 122x360x80 HALP123608GE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HALP123608GE ELDON Terminal box, 122x360x80 HALP123608GE

HALP123608GE

123608

ELDON

1 Pcs.

Terminal box, 122x360x80 HALP123608GE Box for terminals, 122x360x80, without MP, aluminium, IP66 Terminal box, 122x360x80, no MP, aluminium, IP66

Automation > Empty cabinet
Terminal Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eldon terminal box, 122x360x80 halp123608ge is an aluminum protective housing built for heavy-duty industrial wiring terminations and specialized electronic instrumentation. Aluminum enclosures offer exceptional durability, corrosion resistance, and shielding performance in harsh industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (H): 122mm
  • Width (W): 359mm
  • Depth (D): 80mm
  • Material: Aluminum
  • Finish: Powder Coated
  • Color: Silver Grey
  • Color Code: RAL 7001
  • Body Thickness: 4.1mm
  • Cover Thickness: 3.7mm
  • Cover Screw Quantity: 4
  • Weight: 1.8kg
  • UPC: 783510482374
  • EAN: 8713574089280
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Mounting method (EF000003): Surface mounted

More info

▲

Features

  • Material: Aluminium alloy EN AC-47100.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -30 ºC to +80 ºC.
  • Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
  • Finish: RAL 7001.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.
Atributo del producto Valor
Height (H)122mm
Width (W)359mm
Depth (D)80mm
MaterialAluminum
FinishPowder Coated
ColorSilver Grey
Color CodeRAL 7001
Body Thickness4.1mm
Cover Thickness3.7mm
Cover Screw Quantity4
Weight1.8kg
UPC783510482374
EAN8713574089280
Standard Packaging Quantity1
Packing Quantity1
