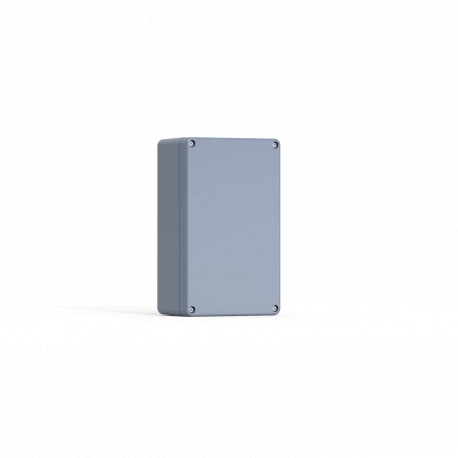

HALP122209GE ELDON Terminal box, 122x220x90 HALP122209GE
HALP122209GE
122209
ELDON
1 Pcs.
Automation > Empty cabinet
Terminal Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eldon HALP122209GE aluminum terminal box is engineered for robust housing of wiring connections, terminal strips, and electronic control modules in harsh industrial environments. Metal housings offer exceptional durability, high impact resistance, and effective shielding against electromagnetic interference.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (H): 122mm
- Width (W): 219mm
- Depth (D): 90mm
- Material: Aluminum
- Finish: Powder Coated
- Color: Silver Grey
- Color Code: RAL 7001
- Body Thickness: 4mm
- Cover Thickness: 4mm
- Cover Screw Quantity: 4
- Weight: 1.5kg
- UPC: 783510482350
- EAN: 8713574089273
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Mounting method (EF000003): Surface mounted
More info
▲Features
- Material: Aluminium alloy EN AC-47100.
- Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
- Temperature resistance: -30 ºC to +80 ºC.
- Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
- Finish: RAL 7001.
- Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
- Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 122mm |
| Width (W) | 219mm |
| Depth (D) | 90mm |
| Material | Aluminum |
| Finish | Powder Coated |
| Color | Silver Grey |
| Color Code | RAL 7001 |
| Body Thickness | 4mm |
| Cover Thickness | 4mm |
| Cover Screw Quantity | 4 |
| Weight | 1.5kg |
| UPC | 783510482350 |
| EAN | 8713574089273 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
