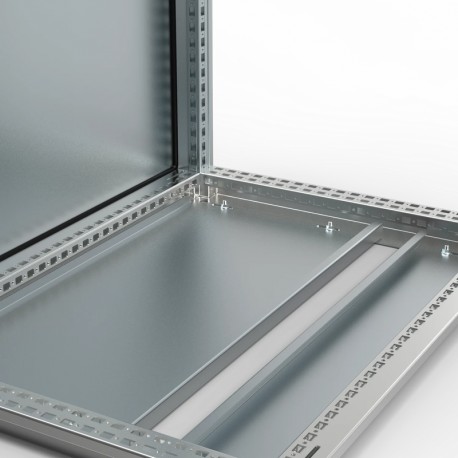

ELDON CBPS0840-316 CBPS0840-316 ELDON Split bottom plate, 800x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CBPS0840-316 ELDON Split bottom plate, 800x400

CBPS0840-316

0840316

ELDON

1 Pcs.

Split bottom plate, 800x400 Plaque inf. div., 800x400, 316 stainless steel Split bottom plate, 800x400, Stainless 316

Automation > Component for installation (switchgear cabinet)
Stainless steel enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to seal the base of electrical enclosures while simplifying cable management, the Eldon CBPS0840-316 split bottom plate allows easy routing of pre-terminated cables. Split floor plates provide convenient bottom access and secure panel sealing for demanding industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Floor plate
  • Suitable for enclosure building width (EF000326): 800.00 mm
  • Suitable for enclosure building depth (EF000327): 400.00 mm
  • Width (EF000008): 800.00 mm
  • Depth (EF000049): 400.00 mm
  • Colour (EF000007): Stainless steel

More info

▲

Features

  • Description: Fitted in place of the standard one piece bottom plate, allows direct cable entry. To achieve perfect sealing around the cables use the gasket kit BG01.
  • Material: AISI 304 / AISI 316L pre-grained stainless steel.
  • Bottom plates: 1.5 mm.
  • Finish: 400 pre-grained stainless steel.
  • Pack quantity: 1 kit of two part bottom plate.
