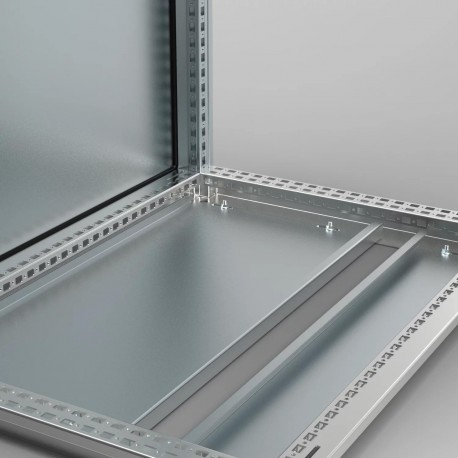

CBPS0640-316 ELDON Split bottom plate, 600x400
CBPS0640-316
0640316
ELDON
1 Pcs.
Split bottom plate, 600x400
Plaque inf. div., 600x400, 316 stainless steel
Split bottom plate, 600x400, Stainless 316
Automation > Component for installation (switchgear cabinet)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: Fitted in place of the standard one piece bottom plate, allows direct cable entry. To achieve perfect sealing around the cables use the gasket kit BG01.
- Material: AISI 304 / AISI 316L pre-grained stainless steel.
- Bottom plates: 1.5 mm.
- Finish: 400 pre-grained stainless steel.
- Pack quantity: 1 kit of two part bottom plate.
| Atributo del producto | Valor |
|---|---|
| Height | 25mm |
| Width | 600mm |
| Depth | 400mm |
| Enclosure Material | Stainless Steel |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Thickness | 1.5mm |
| UPC | 783510455262 |
| EAN | 8713574198203 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Floor plate |
| Suitable for enclosure building width (EF000326) | 600.00 mm |
| Suitable for enclosure building depth (EF000327) | 400.00 mm |
| Width (EF000008) | 600.00 mm |
| Depth (EF000049) | 400.00 mm |
| Material (EF002169) | Other |
| Colour (EF000007) | Stainless steel |
