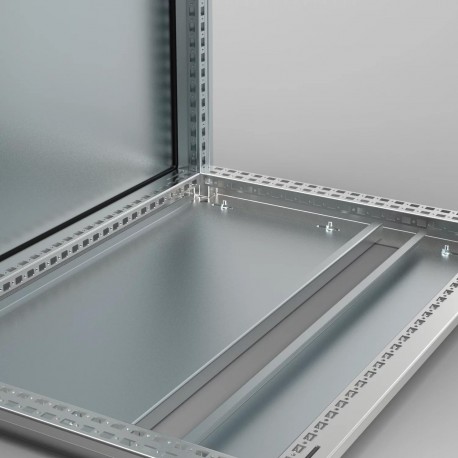

CBPS1040-316 ELDON Split bottom plate, 1000x400
CBPS1040-316
1040316
ELDON
1 Pcs.
Automation > Component for installation (switchgear cabinet)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The CBPS1040-316 Eldon Split bottom plate, 1000x400 forms the lower base closure of an electrical enclosure, allowing cable access while preserving the cabinet's environmental rating. Split floor plates facilitate easier cable routing around already installed harnesses during final on-site wiring phases. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 25mm
- Width: 1000mm
- Depth: 400mm
- Enclosure Material: Stainless Steel
- Material: Stainless Steel 316
- Finish: Brushed
- Thickness: 1.5mm
- UPC: 783510455637
- EAN: 8713574198326
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Model (EF000010): Floor plate
- Suitable for enclosure building width (EF000326): 1.00 mm
- Suitable for enclosure building depth (EF000327): 400.00 mm
- Width (EF000008): 1.00 mm
- Depth (EF000049): 400.00 mm
More info
▲Features
- Description: Fitted in place of the standard one piece bottom plate, allows direct cable entry. To achieve perfect sealing around the cables use the gasket kit BG01.
- Material: AISI 304 / AISI 316L pre-grained stainless steel.
- Bottom plates: 1.5 mm.
- Finish: 400 pre-grained stainless steel.
- Pack quantity: 1 kit of two part bottom plate.
| Atributo del producto | Valor |
|---|---|
| Height | 25mm |
| Width | 1000mm |
| Depth | 400mm |
| Enclosure Material | Stainless Steel |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Thickness | 1.5mm |
| UPC | 783510455637 |
| EAN | 8713574198326 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
