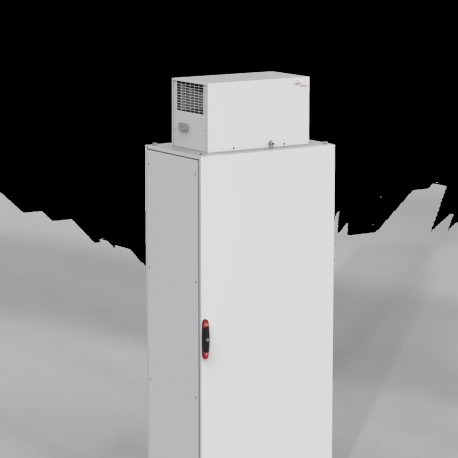

CUH06002 ELDON Roof cooling unit 600W CUH06002
CUH06002
06002
ELDON
1 Pcs.
Roof cooling unit 600W CUH06002
Eq. air-cond. ceiling 600 W, 230 V, sheet steel, IP54
Roof cooling unit 600W, 230V, Mild steel, IP54
Automation > Air conditioner (switchgear cabinet)
General Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Roof cooling unit with a IP 54 protection degree
- The cooling unit can provides cooling to enclosure's that do not have enough space on the door or side panels whether standalone or as part of an enclosure assembly
- Floor standing enclosures can be cooled independently of each other, if required; This avoids cooling the entire enclosure assembly, reducing the amount of energy required, saving unnecessary costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01; Once installed, the door switch will turn the cooling unit off, once the door is opened
- High performance cooling unit for roof mounting, the air conditioners cover a cooling capacity range from 600 W to 3800 W
- Condensation management system, which prevents all condensation from penetrating into the enclosure
- All models are equipped with a condensation dissipator, from 1400 W up to 3800 W units
- Easy installation, with a quick release mounting frame
- Common to all models is the self cleaning condenser coil, which eliminates the necessity for an air filter, avoiding standard maintenance
- All models are equipped with digital display
- The cooling capacity for specific conditions are indicated in the diagrams
- Ozone friendly refrigerant R134a
- Temperature limits inside: +25 °C to +45 °C
- Temperature limits outside: +20 °C to +55 °C
| Atributo del producto | Valor |
|---|---|
| Height | 335 mm |
| Width | 600 mm |
| Depth | 325 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray; RAL 7035 |
| Frequency | 50/60 Hz |
| UPC | 783510461638 |
| EAN | 8713574184091 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Air/air |
| Operating voltage AC 50 Hz (EF008206) | 230.00 V |
| Operating voltage AC 60 Hz (EF008207) | 230.00 V |
| Operating voltage DC (EF008208) | None V |
| Voltage type (EF000187) | AC |
| Speed-regulated (EF011921) | |
| With temperature control (EF000745) | true |
| Function master/slave (EF007183) | true |
| With heating function (EF000479) | |
| Total cooling capacity according to EN 14511 at 35/35 °C (EF011920) | None W |
| Cooling air flow rate (EF024959) | None m³/h |
| Ambient temperature during operating (EF007515) | None °C |
| Width (EF000008) | 335.00 mm |
| Height (EF000040) | 335.00 mm |
| Depth (EF000049) | 320.00 mm |
