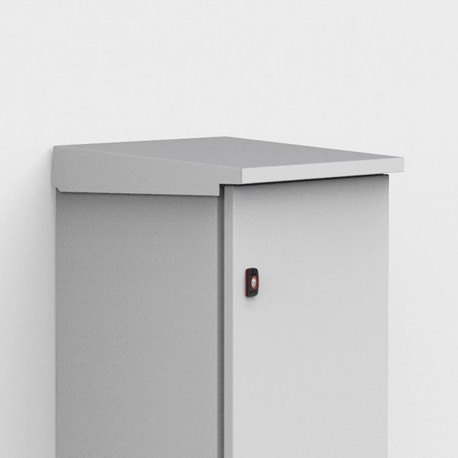

ELDON ARF08021R5 ARF08021R5 ELDON Rain hood, 800x210 ARF08021R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF08021R5 ELDON Rain hood, 800x210 ARF08021R5

ARF08021R5

08021

ELDON

1 Pcs.

Rain hood, 800x210 ARF08021R5 Tejadillo, 800x210, steel sheet Rain Hood, ARF, 60x800x210mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eldon rain hood (ARF08021R5) is a protective slanted canopy mounted over wall-mounted electrical enclosures to deflect falling moisture, debris, and direct sunlight. Rain hoods are widely used on outdoor or washdown-exposed control panels to enhance environmental protection and prolong the lifespan of door seals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 60 mm
  • Width: 800 mm
  • Depth: 210 mm
  • Weight: 3.9 kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall-Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5 mm
  • Package Quantity: 1
  • UPC: 783510450083
  • EAN: 8713574125827
  • Standard Packaging Quantity: 1.0000
  • Packing Quantity: 1.0000

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height60 mm
Width800 mm
Depth210 mm
Weight3.9 kg
Enclosure MaterialMild Steel
Product FamilyWall-Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5 mm
Package Quantity1
UPC783510450083
EAN8713574125827
Standard Packaging Quantity1.0000
Packing Quantity1.0000
