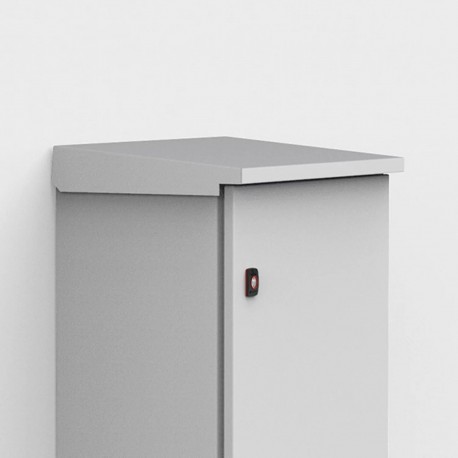

ELDON ARF06021R5 ARF06021R5 ELDON Rain hood, 600x210 ARF06021R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF06021R5 ELDON Rain hood, 600x210 ARF06021R5

ARF06021R5

06021

ELDON

1 Pcs.

Rain hood, 600x210 ARF06021R5 Tejadillo, 600x210, steel sheet Rain Hood, ARF, 60x600x210mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon ARF06021R5 rain hood is a mild steel protective cover designed to shield wall-mounted electrical enclosures from environmental moisture and outdoor precipitation. Rain hoods mount externally above enclosure doors or cabinets to prevent water accumulation around upper seals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 60mm
  • Width: 600mm
  • Depth: 210mm
  • Weight: 3kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510449933
  • EAN: 8713574125728
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height60mm
Width600mm
Depth210mm
Weight3kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510449933
EAN8713574125728
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
