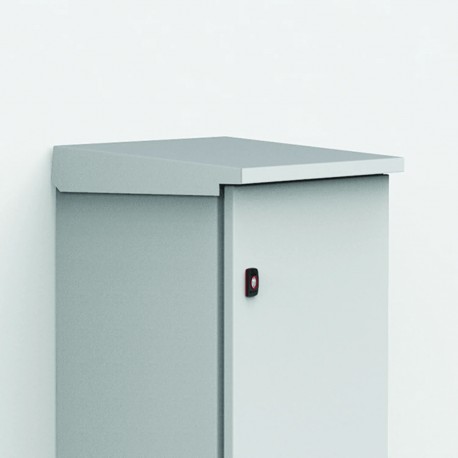

ELDON ARF05026R5 ARF05026R5 ELDON Rain hood, 500x260 ARF05026R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF05026R5 ELDON Rain hood, 500x260 ARF05026R5

ARF05026R5

05026

ELDON

1 Pcs.

Rain hood, 500x260 ARF05026R5 Tejadillo, 500x260, steel sheet Rain Hood, ARF, 65x500x260mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon ARF05026R5 rain hood serves as a protective structural shield mounted on top of electrical enclosures to prevent rain, moisture, and debris from collecting on the cabinet roof. These hoods are standard additions for outdoor-rated electrical installations requiring enhanced weather resistance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): None mm
  • Height (EF000040): None mm
  • Depth (EF000049): None mm
  • Suitable for enclosure building width (EF000326): None mm
  • Suitable for enclosure building depth (EF000327): None mm

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
