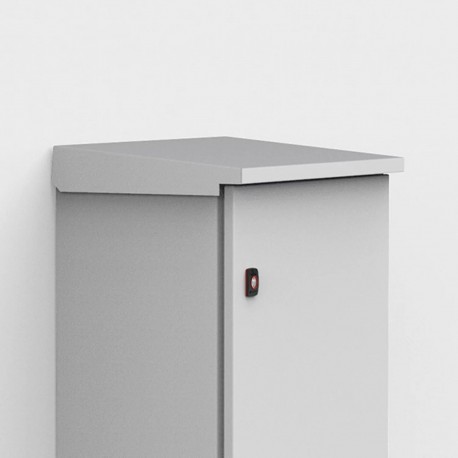

ARF05021R5 ELDON Rain hood, 500x210 ARF05021R5
ARF05021R5
05021
ELDON
1 Pcs.
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A protective rain hood shields wall-mounted electrical enclosures from weather elements, water runoff, and falling foreign debris in demanding industrial settings. Crafted by Eldon under model code ARF05021R5, this mild steel canopy comes in a light gray powder-coated finish for reliable corrosion resistance. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height: 60 mm
- Width: 500 mm
- Depth: 210 mm
- Weight: 2.6 kg
- Enclosure Material: Mild Steel
- Product Family: Wall-Mounted
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 1.5 mm
- Package Quantity: 1
- UPC: 783510449810
- EAN: 8713574125759
- Standard Packaging Quantity: 1.0000
- Packing Quantity: 1.0000
More info
▲Features
- Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
- Material: 1.5 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Pack quantity: 1 rain hood with mounting accessories.
- Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
| Atributo del producto | Valor |
|---|---|
| Height | 60 mm |
| Width | 500 mm |
| Depth | 210 mm |
| Weight | 2.6 kg |
| Enclosure Material | Mild Steel |
| Product Family | Wall-Mounted |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5 mm |
| Package Quantity | 1 |
| UPC | 783510449810 |
| EAN | 8713574125759 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
