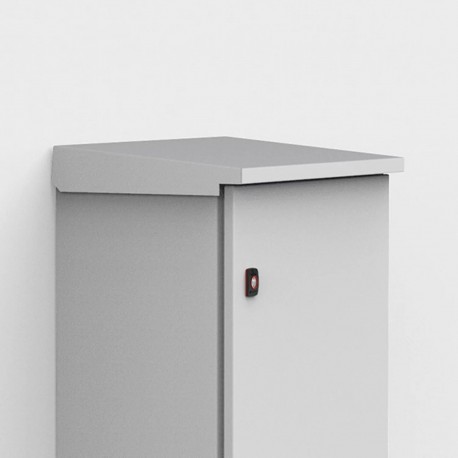

ELDON ARF05015R5 ARF05015R5 ELDON Rain hood, 500x155 ARF05015R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF05015R5 ELDON Rain hood, 500x155 ARF05015R5

ARF05015R5

05015

ELDON

1 Pcs.

Rain hood, 500x155 ARF05015R5 Tejadillo, 500x155, steel sheet Rain Hood, ARF, 55x500x155mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eldon ARF05015R5 rain hood provides robust overhead weather protection for wall-mounted cabinets installed in outdoor or washdown industrial environments. Such accessories shield enclosure seams and ventilation paths from direct precipitation and falling debris.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 55mm
  • Width: 500mm
  • Depth: 155mm
  • Weight: 2kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510449759
  • EAN: 8713574125766
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height55mm
Width500mm
Depth155mm
Weight2kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510449759
EAN8713574125766
Standard Packaging Quantity1
Packing Quantity1
