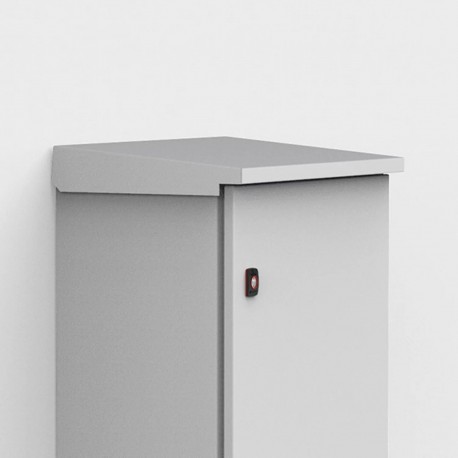

ELDON ARF04021R5 ARF04021R5 ELDON Rain hood, 400x210 ARF04021R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF04021R5 ELDON Rain hood, 400x210 ARF04021R5

ARF04021R5

04021

ELDON

1 Pcs.

Rain hood, 400x210 ARF04021R5 Tejadillo, 400x210, steel sheet Rain Hood, ARF, 60x400x210mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eldon rain hood, designated by part number ARF04021R5, is an external protective canopy engineered to shield wall-mounted electrical enclosures from direct precipitation and environmental elements. Rain hoods extend the service life of outdoor or harsh-environment installations by diverting moisture away from critical cabinet seals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 60mm
  • Width: 400mm
  • Depth: 210mm
  • Weight: 2.1kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510126988
  • EAN: 8713574125797
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height60mm
Width400mm
Depth210mm
Weight2.1kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510126988
EAN8713574125797
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
