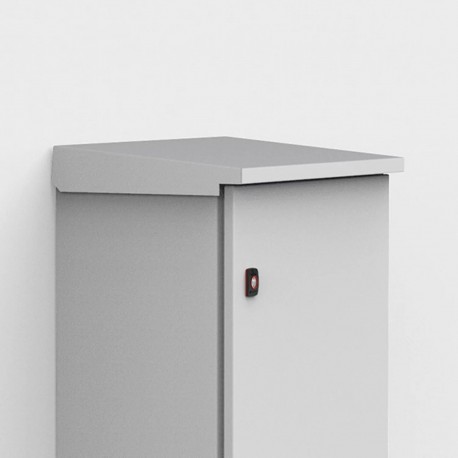

ELDON ARF04015R5 ARF04015R5 ELDON Rain hood, 400x155 ARF04015R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF04015R5 ELDON Rain hood, 400x155 ARF04015R5

ARF04015R5

04015

ELDON

1 Pcs.

Rain hood, 400x155 ARF04015R5 Tejadillo, 400x155, steel sheet Rain Hood, ARF, 55x400x155mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ARF04015R5 Eldon rain hood, 400x155 ARF04015R5 acts as an external protective shield positioned above wall-mounted electrical boxes to prevent liquid ingress. Rain hoods are widely utilized on outdoor and factory floor panels to divert dripping moisture away from critical enclosure seams.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 55mm
  • Width: 400mm
  • Depth: 155mm
  • Weight: 1.8kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510126957
  • EAN: 8713574125803
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height55mm
Width400mm
Depth155mm
Weight1.8kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510126957
EAN8713574125803
Standard Packaging Quantity1
Packing Quantity1
