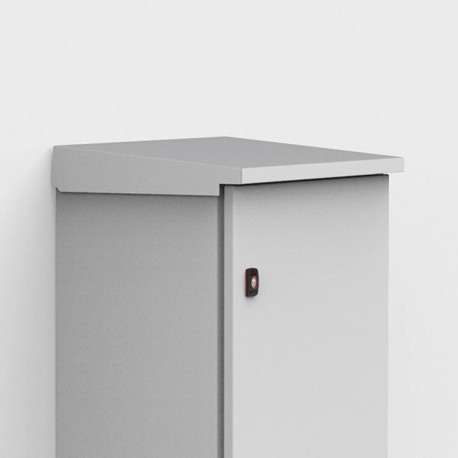

ARF03015R5 ELDON Rain hood, 300x155 ARF03015R5
ARF03015R5
03015
ELDON
1 Pcs.
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ARF03015R5 Eldon rain hood, 300x155 ARF03015R5 serves as an angled protective canopy mounted above wall-mounted control enclosures. Rain hoods deflect overhead moisture and foreign objects, improving the weather resistance and longevity of electrical distribution boxes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 55mm
- Width: 300mm
- Depth: 155mm
- Weight: 1.4kg
- Enclosure Material: Mild Steel
- Product Family: Wall Mounted
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 1.5mm
- Package Quantity: 1
- UPC: 783510126889
- EAN: 8713574125971
- Standard Packaging Quantity: 1
- Packing Quantity: 1
More info
▲Features
- Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
- Material: 1.5 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Pack quantity: 1 rain hood with mounting accessories.
- Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
| Atributo del producto | Valor |
|---|---|
| Height | 55mm |
| Width | 300mm |
| Depth | 155mm |
| Weight | 1.4kg |
| Enclosure Material | Mild Steel |
| Product Family | Wall Mounted |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5mm |
| Package Quantity | 1 |
| UPC | 783510126889 |
| EAN | 8713574125971 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
