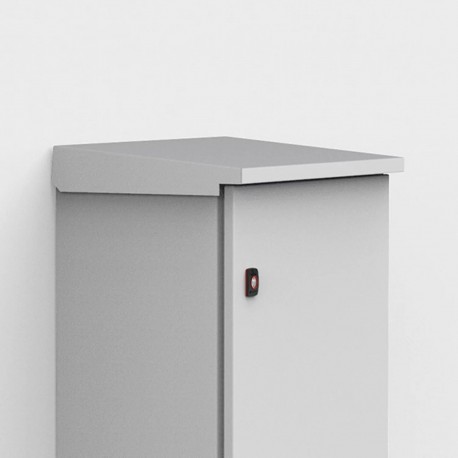

ELDON ARF02515R5 ARF02515R5 ELDON Rain hood, 250x155 ARF02515R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF02515R5 ELDON Rain hood, 250x155 ARF02515R5

ARF02515R5

02515

ELDON

1 Pcs.

Rain hood, 250x155 ARF02515R5 Tejadillo, 250x155, steel sheet Rain Hood, ARF, 55x250x155mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon rain hood part number ARF02515R5 is an external protective cover engineered to shield wall-mounted enclosures from direct precipitation and environmental exposure. Protective hoods and rain shields are commonly mounted above outdoor or washdown electrical cabinets to prevent moisture ingress and prolong the operational lifespan of internal components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 55mm
  • Width: 250mm
  • Depth: 155mm
  • Weight: 1.3kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510126827
  • EAN: 8713574124226
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height55mm
Width250mm
Depth155mm
Weight1.3kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510126827
EAN8713574124226
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
