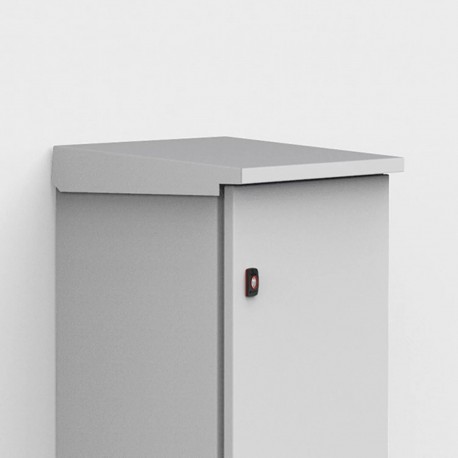

ELDON ARF12030R5 ARF12030R5 ELDON Rain hood, 1200x300 ARF12030R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF12030R5 ELDON Rain hood, 1200x300 ARF12030R5

ARF12030R5

12030

ELDON

1 Pcs.

Rain hood, 1200x300 ARF12030R5 Tejadillo, 1200x300, steel sheet Rain Hood, ARF, 68x1200x300mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eldon ARF12030R5 rain hood is an exterior protective cover designed to deflect moisture and debris away from wall-mounted electrical enclosures. Protective hoods prevent water ingress around panel top joints in demanding outdoor or washdown applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 68mm
  • Width: 1200mm
  • Depth: 300mm
  • Weight: 7kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • ...

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height68mm
Width1200mm
Depth300mm
Weight7kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510450151
EAN8713574125636
Standard Packaging Quantity1
Packing Quantity1
