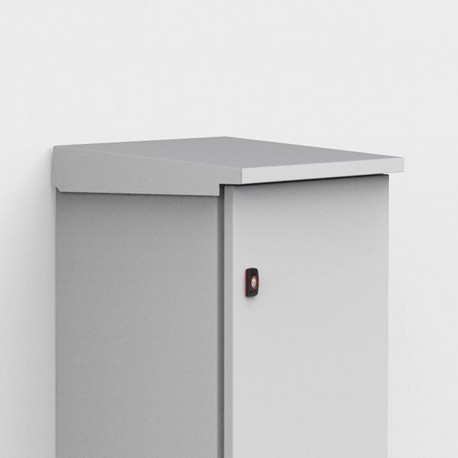

ELDON ARF10030R5 ARF10030R5 ELDON Rain hood, 1000x300 ARF10030R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ARF10030R5 ELDON Rain hood, 1000x300 ARF10030R5

ARF10030R5

10030

ELDON

1 Pcs.

Rain hood, 1000x300 ARF10030R5 Tejadillo, 1000x300, steel sheet Rain Hood, ARF, 68x1000x300mm, Light Gray, Mild Steel

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eldon ARF10030R5 rain hood is an overhanging protective shield mounted atop wall-mounted electrical enclosures to deflect falling liquids and harsh weather elements away from housing seals. Rain hoods are widely utilized in factory automation and outdoor-adjacent settings to extend the operational lifespan of cabinet seals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 68mm
  • Width: 1000mm
  • Depth: 300mm
  • Weight: 6.2kg
  • Enclosure Material: Mild Steel
  • Product Family: Wall Mounted
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510450144
  • EAN: 8713574125643
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1

More info

▲

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height68mm
Width1000mm
Depth300mm
Weight6.2kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510450144
EAN8713574125643
Standard Packaging Quantity1
Packing Quantity1
