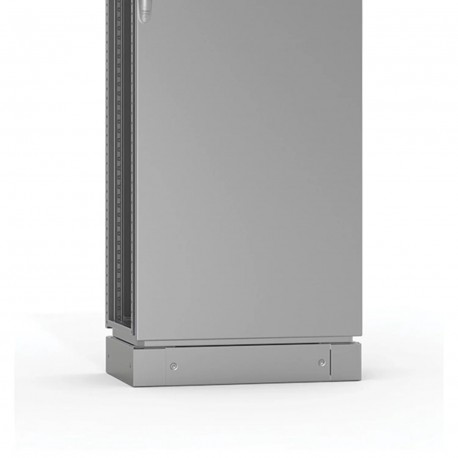

ELDON PFS2080-316 PFS2080-316 ELDON Plinth front/ rear, 200x800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PFS2080-316 ELDON Plinth front/ rear, 200x800

PFS2080-316

2080316

ELDON

1 Pcs.

Plinth front/ rear, 200x800 Socket, 200x800, 316 stainless steel. Pack of 2 units. Plinth front/ rear, 200x800, Stainless steel 316

Automation > Base/base element (switchgear cabinet)
Stainless steel enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eldon PFS2080-316 stainless steel front and rear plinth components create a reliable, heavy-duty base framework for free-standing electrical enclosures in corrosive or washdown environments. Plinth sections elevate equipment housings to protect against floor moisture and allow smooth access for cabling.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 200mm
  • Width: 800mm
  • Depth: 60mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Stainless Steel 316
  • Finish: Brushed
  • Thickness: 1.5mm
  • Package Quantity: 1
  • UPC: 783510526054
  • EAN: 8713574192287
  • Standard Packaging Quantity: 1
  • Packing Quantity: 2
  • Max. load capacity (EF000258): None kg
  • Width (EF000008): None mm
  • Height (EF000040): None mm

More info

▲

Features

  • Description: Front and rear plinth sections. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. The side panels PSS are to be ordered separately. Produced in 100 mm and 200 mm heights. 200 mm high plinths are delivered with a rear cover for cabling that consists of two removable panels 100 mm high. The front cover is a one piece panel of 200 mm high. All panels have double returns on each panel for added strength.
  • Material: AISI 304 / AISI 316L pre-grained stainless steel. Corners 2 mm and panels 1.5 mm.
  • Finish: 400 pre-grained stainless steel.
  • Pack quantity: 1x front plinth and 1x rear plinth with mounting accessories.
  • Mounting requirements: Add the side panels PSS for a complete plinth.
Atributo del producto Valor
Height200mm
Width800mm
Depth60mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialStainless Steel 316
FinishBrushed
Thickness1.5mm
Package Quantity1
UPC783510526054
EAN8713574192287
Standard Packaging Quantity1
Packing Quantity2
