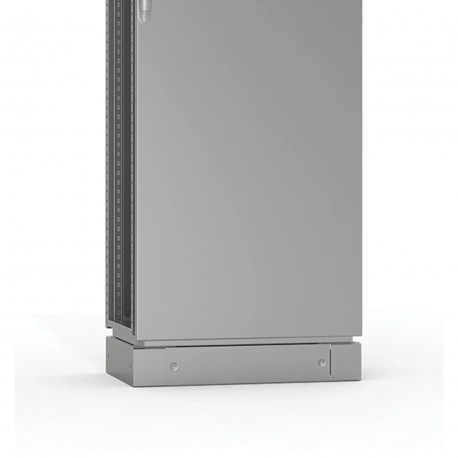

PFS1080-316 ELDON Plinth front/ rear, 100x800
PFS1080-316
1080316
ELDON
1 Pcs.
Plinth front/ rear, 100x800
Socket, 100x800, 316 stainless steel. Pack of 2 units.
Plinth front/ rear, 100x800, Stainless steel 316
Automation > Base/base element (switchgear cabinet)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: Front and rear plinth sections. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. The side panels PSS are to be ordered separately. Produced in 100 mm and 200 mm heights. 200 mm high plinths are delivered with a rear cover for cabling that consists of two removable panels 100 mm high. The front cover is a one piece panel of 200 mm high. All panels have double returns on each panel for added strength.
- Material: AISI 304 / AISI 316L pre-grained stainless steel. Corners 2 mm and panels 1.5 mm.
- Finish: 400 pre-grained stainless steel.
- Pack quantity: 1x front plinth and 1x rear plinth with mounting accessories.
- Mounting requirements: Add the side panels PSS for a complete plinth.
| Atributo del producto | Valor |
|---|---|
| Height | 100 mm |
| Width | 800 mm |
| Depth | 60 mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Color | Unpainted |
| Thickness | 1.5 mm |
| Package Quantity | 1 |
| Weight | 4.3 kg |
| UPC | 783510525958 |
| EAN | 8713574192201 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | |
| Material (EF002169) | |
| Colour (EF000007) | |
| Max. load capacity (EF000258) | None kg |
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
| Suitable for enclosure building width (EF000326) | None mm |
| Suitable for enclosure building depth (EF000327) | None mm |
| Suitable for aeration/de-aeration (EF000324) | |
| Suitable for cable patch (EF007251) |
