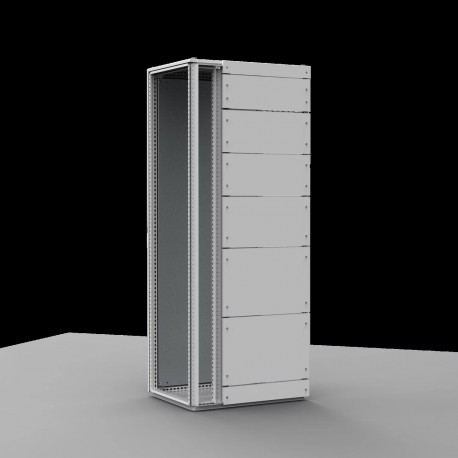

ELDON DPP04006R5 DPP04006R5 ELDON Partial panel, 400x600 DPP04006R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DPP04006R5 ELDON Partial panel, 400x600 DPP04006R5

DPP04006R5

04006

ELDON

1 Pcs.

Partial panel, 400x600 DPP04006R5 Pane partial, 400x600, steel sheet Partial panel, 400x600, Mild steel

Automation > Front plate (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eldon DPP04006R5 partial panel provides a sturdy internal mounting surface and segregation barrier within free-standing industrial enclosures. Engineers utilize partial panels to construct modular sub-assemblies, mount control gear independently, and compartmentalize different voltage levels inside a single cabinet frame.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 400mm
  • Width: 600mm
  • Depth: 17mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.75mm
  • UPC: 783510472030
  • EAN: 8713574122772
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Width (EF000008): 600.00 mm
  • Height (EF000040): 400.00 mm

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 panel with mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
Atributo del producto Valor
Height400mm
Width600mm
Depth17mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.75mm
UPC783510472030
EAN8713574122772
Standard Packaging Quantity1
Packing Quantity1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
