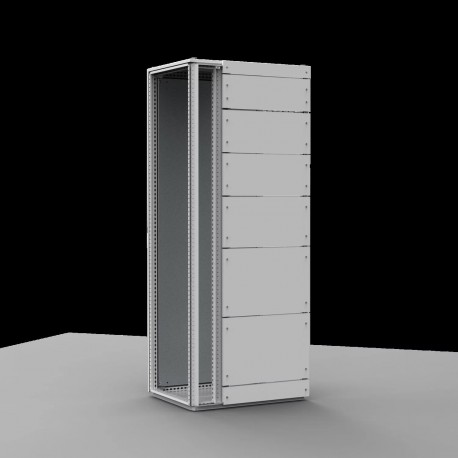

ELDON DPP04004R5 DPP04004R5 ELDON Partial panel, 400x400 DPP04004R5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DPP04004R5 ELDON Partial panel, 400x400 DPP04004R5

DPP04004R5

04004

ELDON

1 Pcs.

Partial panel, 400x400 DPP04004R5 Pane partial, 400x400, steel sheet Partial panel, 400x400, Mild steel

Automation > Front plate (switchgear cabinet)
Power and distribution

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for industrial free-standing enclosures, this Eldon DPP04004R5 partial panel provides a dependable internal mounting surface for electrical components and control gear.

Partial mounting plates and internal panels allow panel builders to mount DIN rails, terminal blocks, and automation devices flexibly without needing a full-height backplate.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 400mm
  • Width: 400mm
  • Depth: 17mm
  • Enclosure Material: Mild Steel
  • Product Family: Free-Standing
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness: 1.75mm
  • UPC: 783510472016
  • EAN: 8713574122789
  • Standard Packaging Quantity: 1
  • Packing Quantity: 1
  • Width (EF000008): 400.00 mm
  • Height (EF000040): 400.00 mm

More info

▲

Features

  • Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
  • Material: 1.75 mm steel plate.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 panel with mounting accessories.
  • Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
Atributo del producto Valor
Height400mm
Width400mm
Depth17mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.75mm
UPC783510472016
EAN8713574122789
Standard Packaging Quantity1
Packing Quantity1
