View larger
Images are for illustrative purposes only. Please refer to data sheet for details

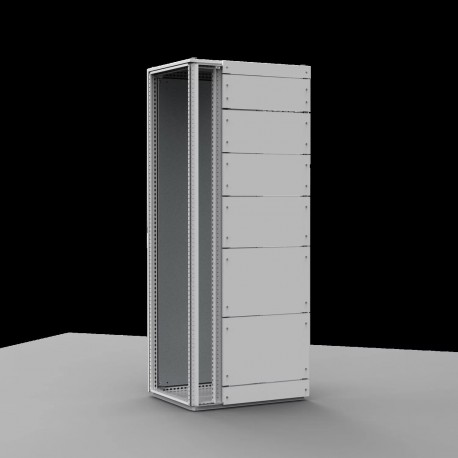

DPP03008R5 ELDON Partial panel, 300x800 DPP03008R5
DPP03008R5
03008
ELDON
1 Pcs.
Partial panel, 300x800 DPP03008R5
Pane partial, 300x800, steel sheet
Partial panel, 300x800, Mild steel
Automation > Front plate (switchgear cabinet)
Power and distribution
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Features
- Description: To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required.
- Material: 1.75 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 54.
- Pack quantity: 1 panel with mounting accessories.
- Mounting requirements: Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels.
| Atributo del producto | Valor |
|---|---|
| Height | 300mm |
| Width | 800mm |
| Depth | 17mm |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.75mm |
| UPC | 783510471972 |
| EAN | 8713574184497 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 800.00 mm |
| Height (EF000040) | 300.00 mm |
| Suitable for enclosure building width (EF000326) | 800.00 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
